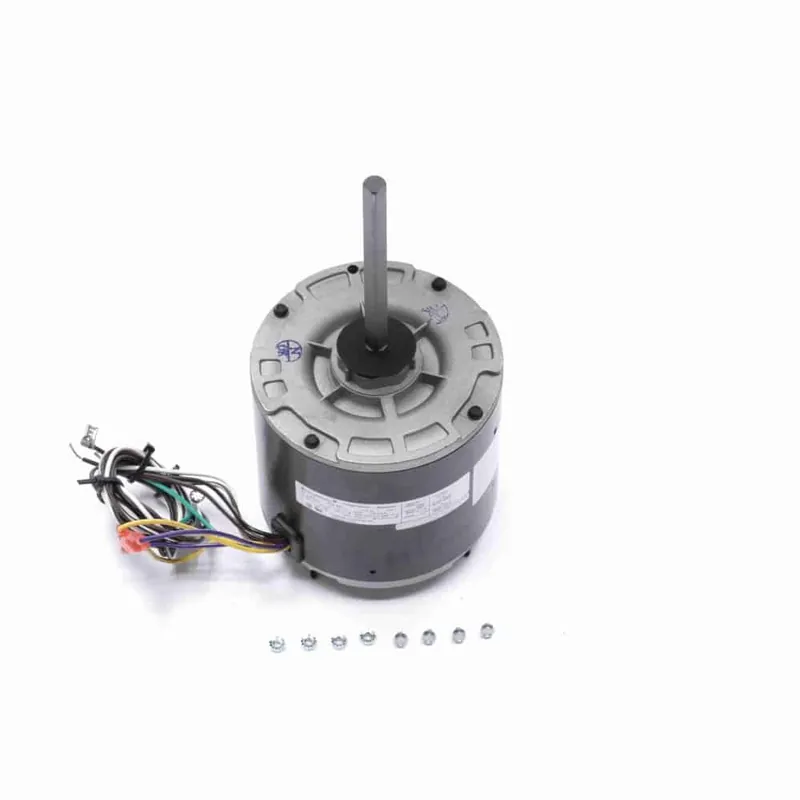

1/3HP PSC 48Y TE 825 208-230V 5uF CF

Description

Product Information

Brand Century
Sub-Brand PRO-E SERIES®
Mfr # EM3405F
Wright’s # CEN EM3405F
Country of Origin IND

Specifications

C Dim 11.67″
Electrical Type Permanent Split Capacitor
Enclosure TEAO
Frame 48Y
Frequency 60 Hz
HP 0.33 HP
HP2 1/3 HP
Insulation Class F
kW 0.25kW
Material Rolled Steel
MaAmbient 70°C
Number of Poles 8
Number of Speeds 1
Overload Protection Automatic
Phase 1
Rated Current 1.6-1.8
Rated Voltage 208-230
Rotation Reversible
RPM 825
Service Factor 1
Shaft Diameter 0.5″
Speed 825
Starting Method
