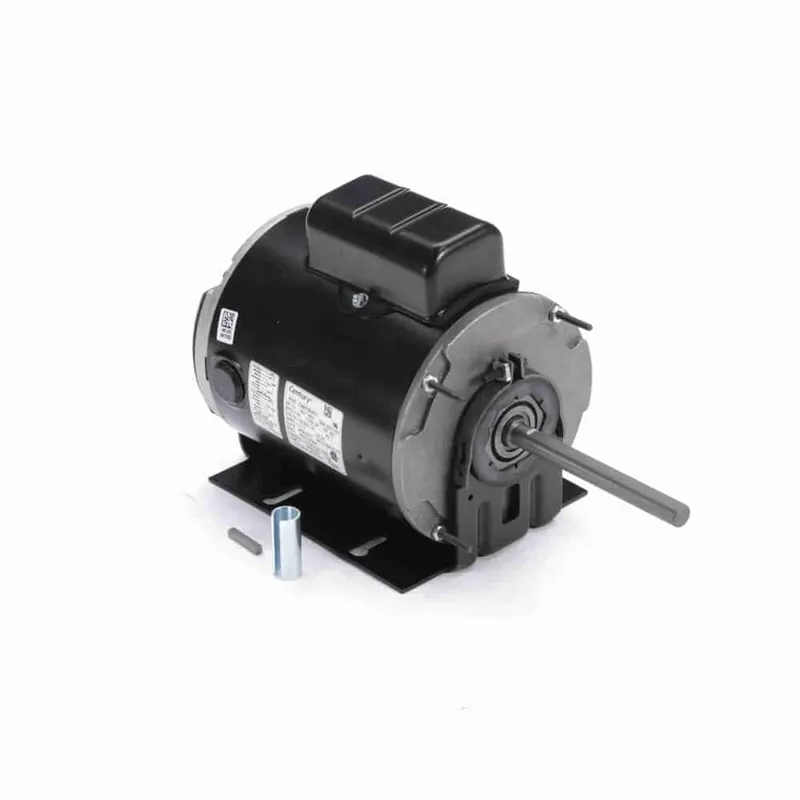

1/3HP PSC 48Y TE 1140 REV 115/208-230V 5uF-inc

Description

Product Information

Brand Century
Mfr # 732A
Wright’s # CEN 732A
Country of Origin IND

Specifications

C Dim 12.21″
Electrical Type Permanent Split Capacitor
Enclosure TEAO
Frame 48Y
Frequency 60 Hz
HP 0.33 HP
HP2 1/3 HP
Insulation Class B
kW 0.25kW
Material Rolled Steel
MaAmbient 60°C
Number of Poles 6
Number of Speeds 1
Overload Protection Automatic
Phase 1
Rated Current 3.3/1.7
Rated Voltage 115/208-230
Rotation Reversible
RPM 1140
Service Factor 1
Shaft Diameter 0.5″
Speed 1140
Starting Method
