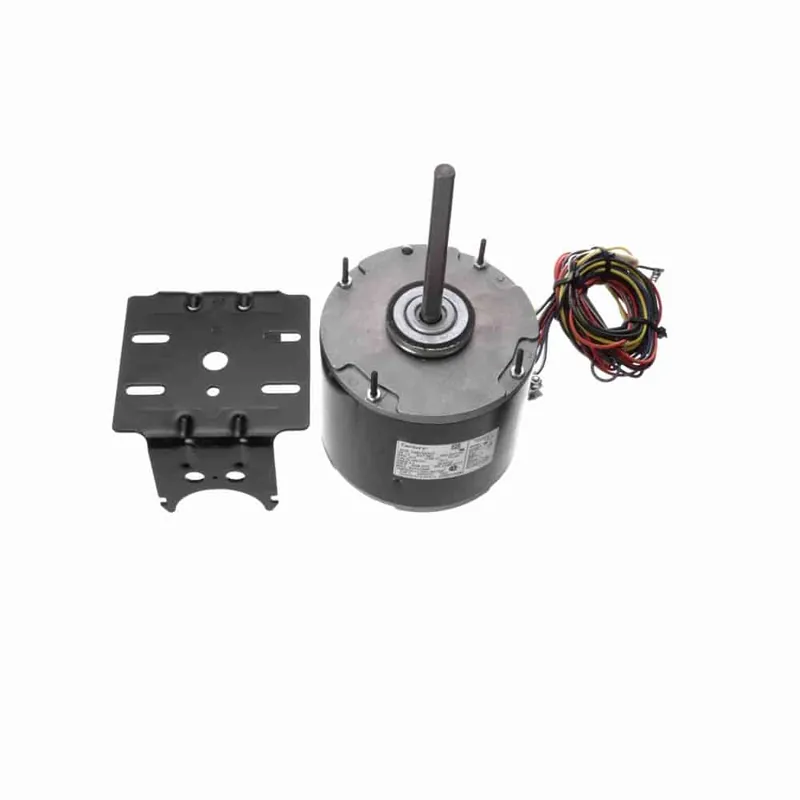

1/3HP PSC 48Y TE 1075 208-230V 5uF-inc

Description

Product Information

Brand Century
Mfr # UHH1036
Wright’s # CEN UHH1036

Specifications

C Dim 10.61″
Electrical Type Permanent Split Capacitor
Enclosure TEAO
Frame 48Y
Frequency 60 Hz
HP 0.33 HP
HP2 1/3 HP
Insulation Class B
kW 0.25kW
Material Rolled Steel
MaAmbient 40°C
Number of Poles 6
Number of Speeds 1
Overload Protection Automatic
Phase 1
Rated Current 2.2
Rated Voltage 208-230
Rotation Reversible
RPM 1075
Service Factor 1
Shaft Diameter 0.5″
Speed 1075
Starting Method
