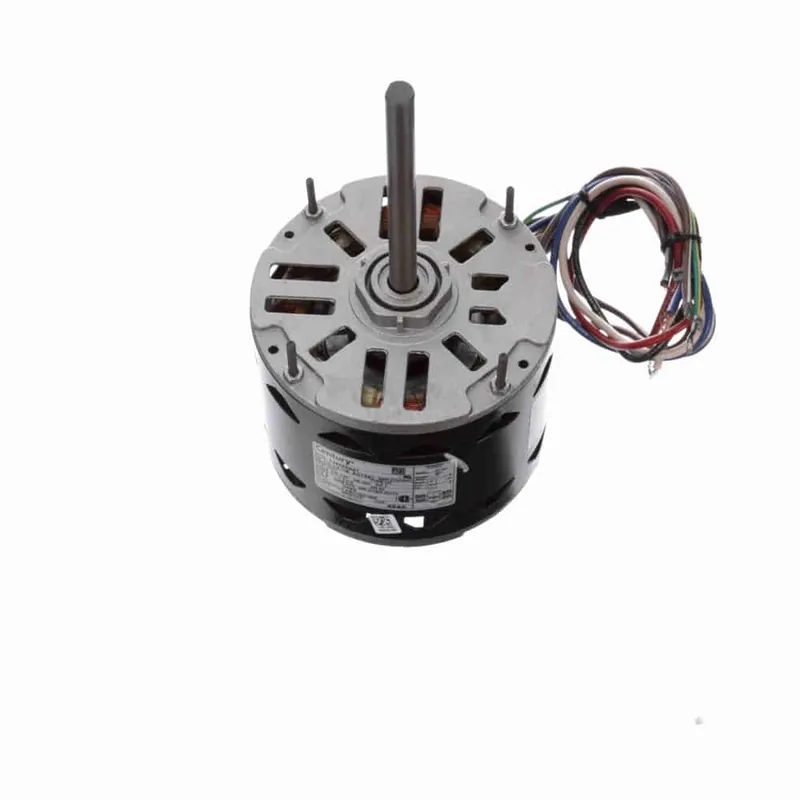

1/3HP PSC 48Y ODP 3spd 1625 REV 208-230V 5uF BM

Description

Product Information

Brand Century
Mfr # 454A
Wright’s # CEN 454A
Country of Origin IND

Specifications

C Dim 10.41″
Electrical Type Permanent Split Capacitor
Enclosure ODP
Full Load Efficiency 68
Frame 48Y
Frequency 60 Hz
HP 0.33 HP
HP2 1/3-1/4-1/6 HP
Insulation Class B
kW 0.25kW
Material Rolled Steel
MaAmbient 60°C
Number of Poles 4
Number of Speeds 3
Overload Protection Automatic
Phase 1
Rated Current 2.1,1.2,0.9
Rated Voltage 208-230
Rotation Reversible
RPM 1625
Service Factor 1
Shaft Diameter 0.5″
Speed 1625
Starting Method
