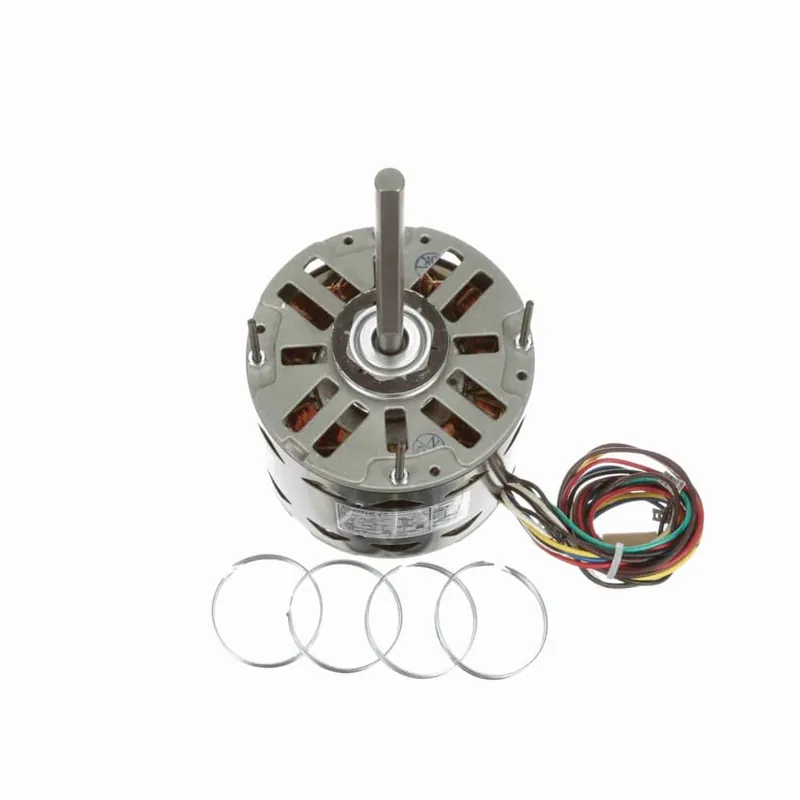

1/3HP PSC 48Y ODP 3spd 1075 208-230V 5uF BM

Description

Product Information

Brand Century
Mfr # FD1036
Wright’s # CEN FD1036
Country of Origin IND

Specifications

C Dim 11.55″
Electrical Type Permanent Split Capacitor
Enclosure ODP
Frame 48Y
Frequency 60 Hz
HP 0.33 HP
HP2 1/3 HP
Insulation Class A
kW 0.25kW
Material Rolled Steel
MaAmbient 50°C
Number of Poles 6
Number of Speeds 3
Overload Protection Automatic
Phase 1
Rated Current 3.2
Rated Voltage 208-230
Rotation Reversible
RPM 1075
Service Factor 1
Shaft Diameter 0.5″
Speed 1075
Starting Method
