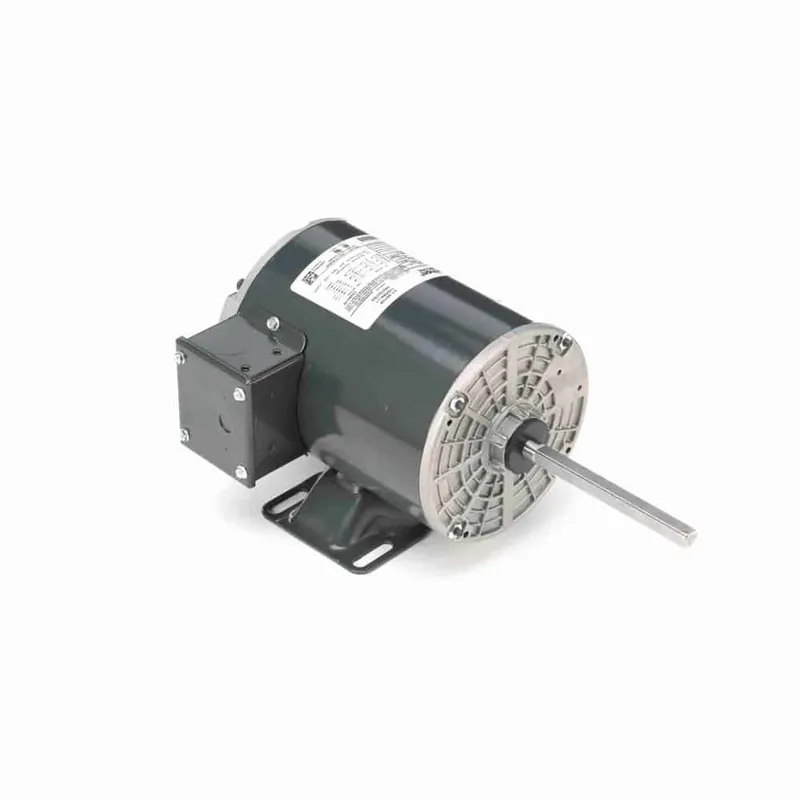

1/3HP 3PH 6.5″ OAO 1200 208-230/460V WB CF

Description

Product Information

Brand Marathon
Mfr # X532
Wright’s # MAR X532
Country of Origin MEX

Specifications

C Dim 13.37″
Electrical Type Squirrel Cage Induction Run
Enclosure ODP
Full Load Efficiency 72
Frame 56Z
Frequency 60 Hz
HP 0.33 HP
HP2 1/3 HP
Insulation Class B
kW 0.25kW
Material Rolled Steel
MaAmbient 60°C
Mounting Type Rigid Base
Number of Poles 6
Number of Speeds 1
Overload Protection Automatic
Phase 3
Rated Current 1.8-1.8/.9 & 2/1
Rated Voltage 208-230/460
Rotation Reversible
RPM 1140
Service Factor 1
Shaft Diameter 0.625″
Speed 1140 & 950
Starting Method
