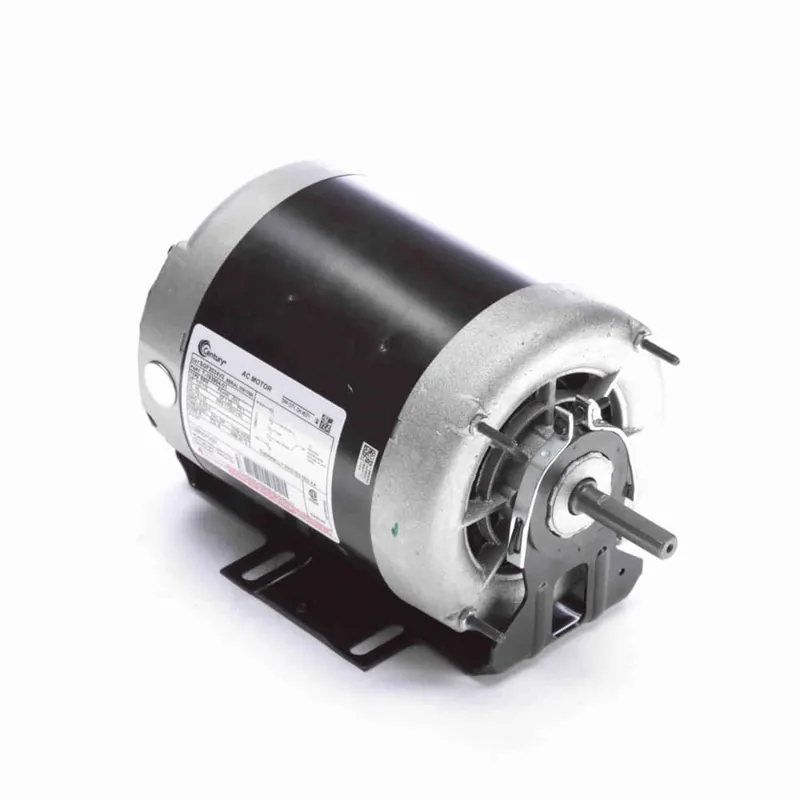

1/3HP 1PH 56Z ODP 2spd 1725 2W-VT 115V BM

Description

Product Information

Brand Century
Mfr # SGF2034V2
Wright’s # CEN SGF2034V2
Country of Origin MEX

Specifications

C Dim 11.19″
Electrical Type Split Phase, Induction Run, Multi-Speed
Enclosure ODP
Frame 56Z
Frequency 60 Hz
HP 0.33 HP
HP2 1/3-1/8 HP
Insulation Class B
kW 0.25kW
Material Rolled Steel
MaAmbient 40°C
Number of Poles 4/6
Number of Speeds 2-2-VT
Overload Protection Thermally Protected
Phase 1
Rated Current 5.0/3.0
Rated Voltage 115
Rotation Reversible Counterclockwise
RPM 1725
Service Factor 1
Shaft Diameter 0.5″
Speed 1725/1140
Starting Method
