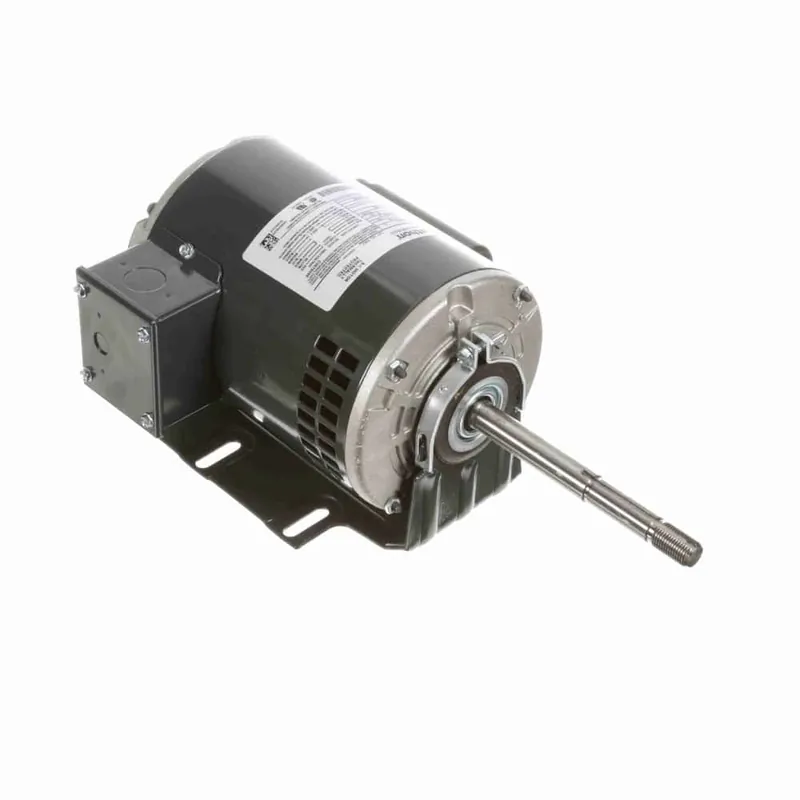

1/3HP 1PH 56Z 4P ODP 1800 115/208-230V AOL RB DRYER

Description

Product Information

Brand Marathon
Mfr # X601
Wright’s # MAR X601
Country of Origin MEX

Specifications

C Dim 14.41″
Electrical Type Capacitor Start Induction Run
Enclosure ODP
Full Load Efficiency 62
Frame 56Z
Frequency 60 Hz
HP 0.33 HP
HP2 1/3 HP
Insulation Class B
kW 0.25kW
Material Rolled Steel
MaAmbient 40°C
Mounting Type Resilient Base
Number of Poles 4
Number of Speeds 1
Overload Protection Automatic
Phase 1
Rated Current 5.8/2.8-2.9
Rated Voltage 115/208-230
Rotation Fixed Counterclockwise
RPM 1725
Service Factor 1.35
Shaft Diameter 0.625″
Speed 1725
Starting Method
