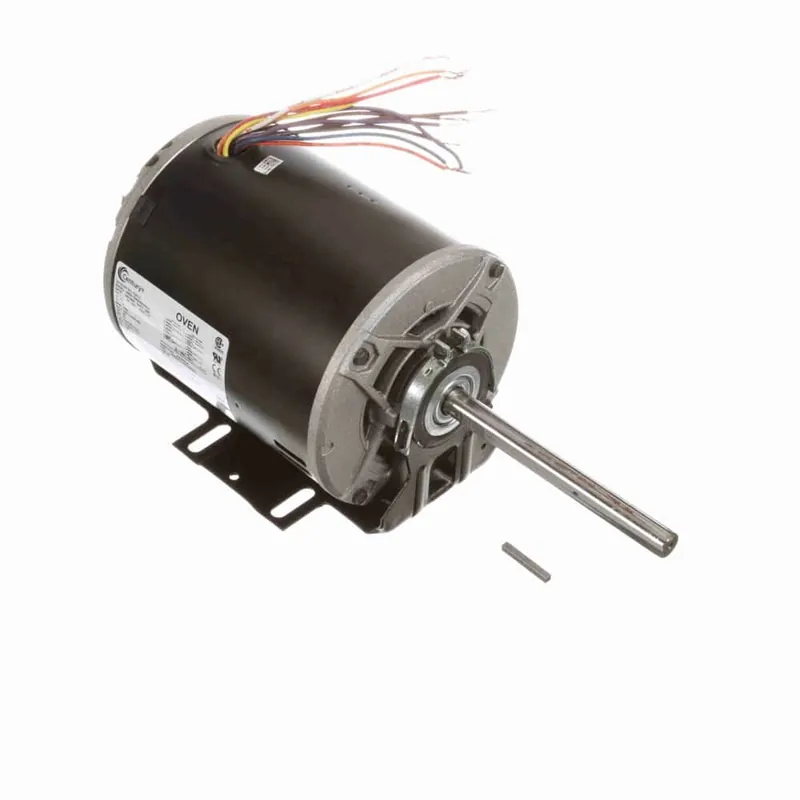

1/3HP 1PH 56Z 4P ODP 1725 100-115/200-230V AOL OVEN

Description

Product Information

Brand Century
Mfr # F267V1
Wright’s # CEN F267V1
Country of Origin MEX

Specifications

C Dim 15.01″
Electrical Type Split Phase
Enclosure ODP
Full Load Efficiency 70
Frame 56Z
Frequency 60 Hz
HP 0.33 HP
HP2 1/3 HP
Insulation Class B
kW 0.25kW
Material Rolled Steel
MaAmbient 60°C
Number of Poles 4
Number of Speeds 1
Overload Protection Thermally Protected
Phase 1
Rated Current 4.8-4.8/2.4-2.4
Rated Voltage 100-115/200-230
Rotation Selective Counterclockwise
RPM 1725
Service Factor 1.35
Shaft Diameter 0.625″
Speed 1725
Starting Method
