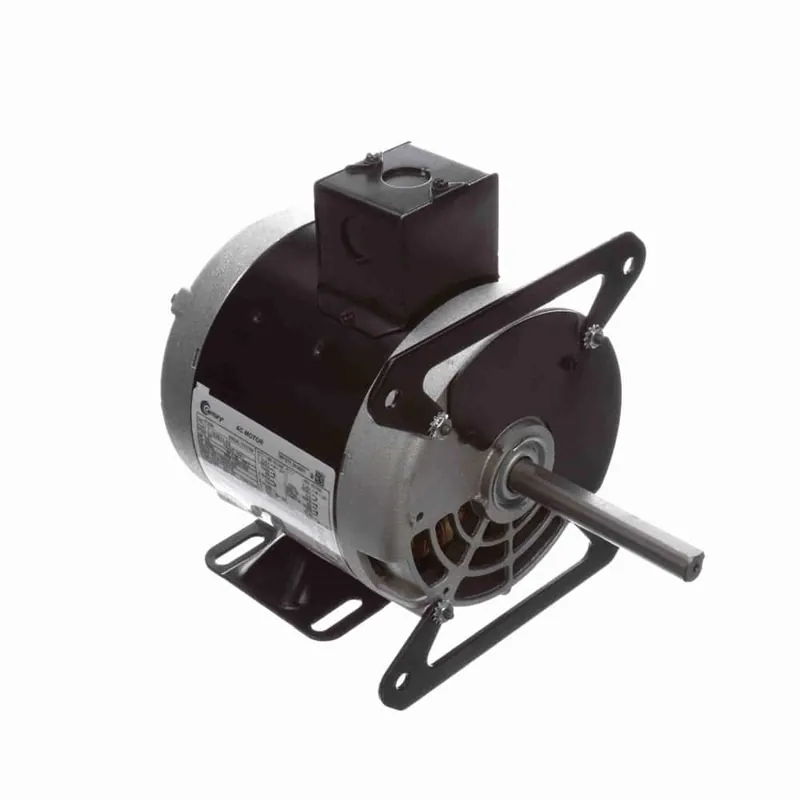

1/3HP 1PH 56Y 4P ODP 1725 100-115/200-230V AOL OVEN

Description

Product Information

Brand Century
Mfr # F266
Wright’s # CEN F266
Country of Origin MEX

Specifications

C Dim 11.62″
Electrical Type Split Phase, Induction Run, Single Or Dual Voltage
Enclosure ODP
Frame 56Y
Frequency 60 Hz
HP 0.33 HP
HP2 1/3 HP
Insulation Class B
kW 0.25kW
Material Rolled Steel
MaAmbient 60°C
Number of Poles 4
Number of Speeds 1
Overload Protection Thermally Protected
Phase 1
Rated Current 5.0-5.2/2.5-2.6
Rated Voltage 100-115/200-230
Rotation Reversible Clockwise
RPM 1725
Service Factor 1.35
Shaft Diameter 0.625″
Speed 1725/1425
Starting Method
