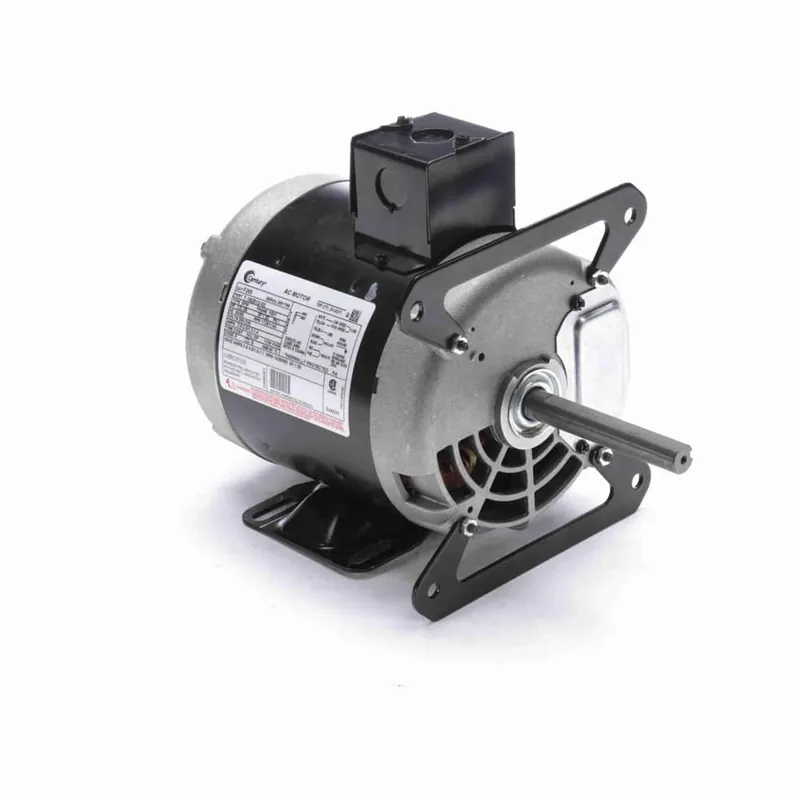

1/3HP 1PH 56Y 45388P ODP 2spd 1725 2W-VT 200-230V AOL OVEN

Description

Product Information

Brand Century
Mfr # F265
Wright’s # CEN F265
Country of Origin MEX

Specifications

C Dim 12.25″
Electrical Type Split Phase, Induction Run, Multi-Speed
Enclosure ODP
Frame 56Y
Frequency 60 Hz
HP 0.33 HP
HP2 1/3-.09 HP
Insulation Class B
kW 0.25kW
Material Rolled Steel
MaAmbient 60°C
Number of Poles 4/6
Number of Speeds 2-2-VT
Overload Protection Thermally Protected
Phase 1
Rated Current 2.8-2.9/1.3-1.4
Rated Voltage 200-230
Rotation Reversible Counterclockwise
RPM 1725
Service Factor 1.35
Shaft Diameter 0.625″
Speed 1725/1140
Starting Method
