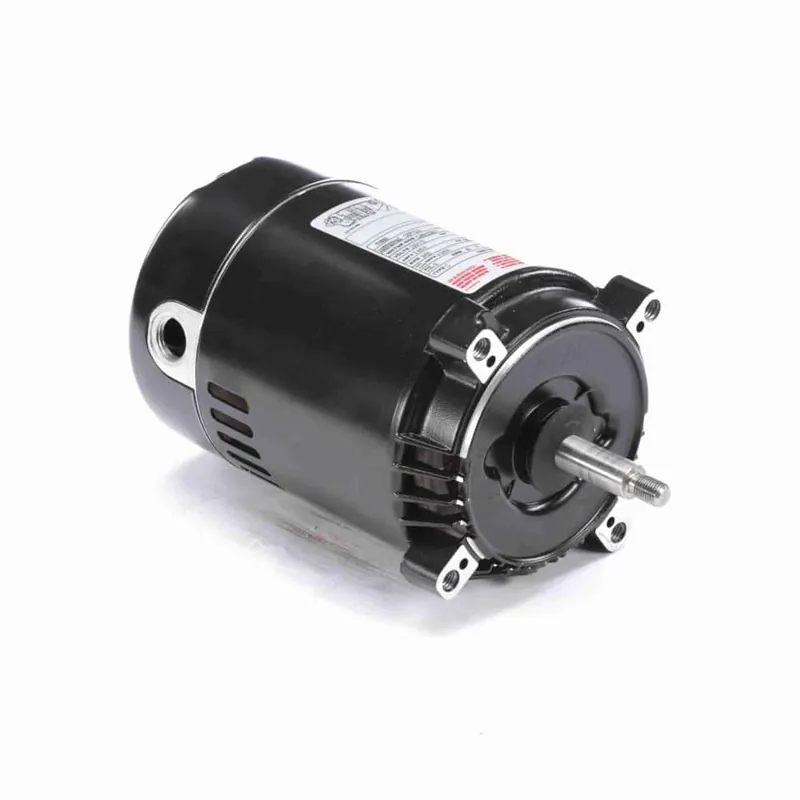

1/3HP 1PH 56J 2P ODP 3450 115/230V AOL JP

Description

Product Information

Brand Century
Mfr # T1032
Wright’s # CEN T1032
Country of Origin CHN

Specifications

C Dim 10.81″
Electrical Type Capacitor Start Induction Run
Enclosure ODP
Frame 56J
Frequency 60 Hz
HP 0.33 HP
HP2 1/3 HP
Insulation Class B
kW 0.25kW
Material Rolled Steel
MaAmbient 40°C
Number of Poles 2
Number of Speeds 1
Overload Protection Automatic
Phase 1
Rated Current 3.4/6.8
Rated Voltage 115/230
Rotation Counterclockwise Pump End
RPM 3450
Service Factor 1.8
Shaft Diameter 0.625″
Speed 3450
Starting Method
