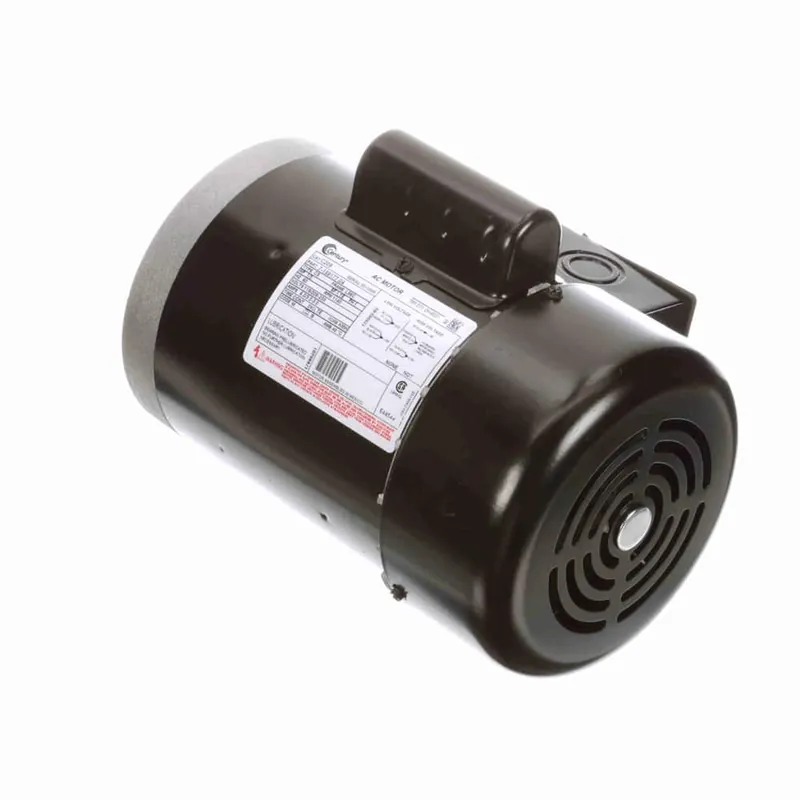

1/3HP 1PH 56C 6P TEFC 1140 115/208-230V

Description

Product Information

Brand Century
Mfr # C209
Wright’s # CEN C209
Country of Origin MEX

Specifications

C Dim 12.46″
Electrical Type Capacitor Start, Induction Run, Single Or Dual Voltage
Enclosure TEFC
Frame 56C
Frequency 60 Hz
HP 0.33 HP
HP2 1/3 HP
Insulation Class B
kW 0.25kW
Material Rolled Steel
MaAmbient 40°C
Number of Poles 6
Number of Speeds 1
Overload Protection No Protection
Phase 1
Rated Current 6.0/3.0-3.0
Rated Voltage 115/208-230
Rotation Reversible Counterclockwise
RPM 1140
Service Factor 1.15
Shaft Diameter 0.625″
Speed 1140
Starting Method
