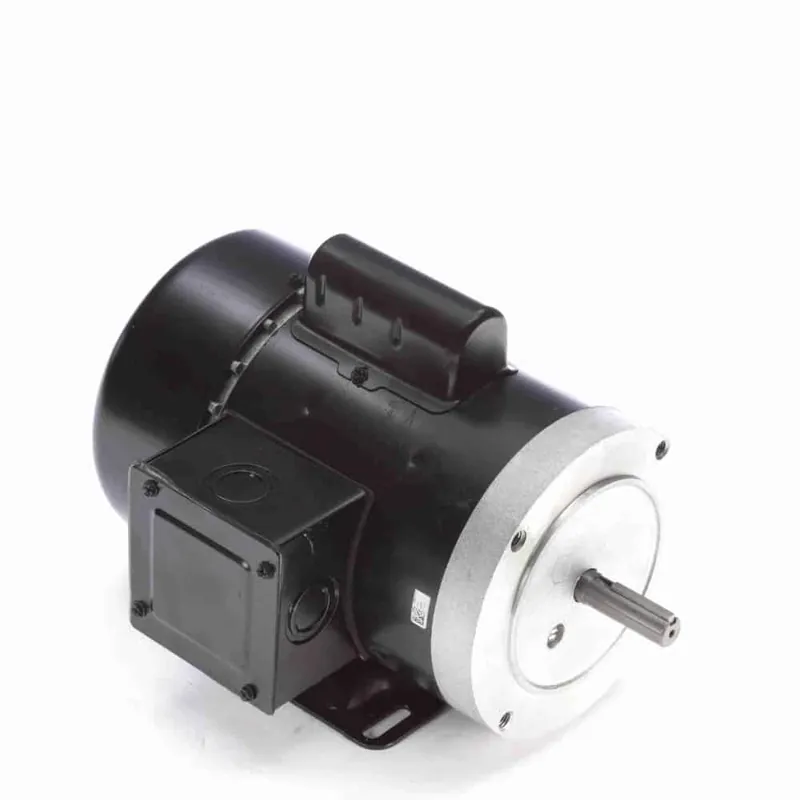

1/3HP 1PH 56C 4P TEFC 1725 115/208-230V

Description

Product Information

Brand Century
Mfr # C824
Wright’s # CEN C824
Country of Origin MEX

Specifications

C Dim 12.21″
Electrical Type Capacitor Start, Induction Run, Single Or Dual Voltage
Enclosure TEFC
Frame 56C
Frequency 60 Hz
HP 0.33 HP
HP2 1/3 HP
Insulation Class B
kW 0.25kW
Material Rolled Steel
MaAmbient 40°C
Number of Poles 4
Number of Speeds 1
Overload Protection No Protection
Phase 1
Rated Current 6.4/3.2
Rated Voltage 115/208-230
Rotation Reversible Counterclockwise
RPM 1725
Service Factor 1.15
Shaft Diameter 0.625″
Speed 1725
Starting Method
