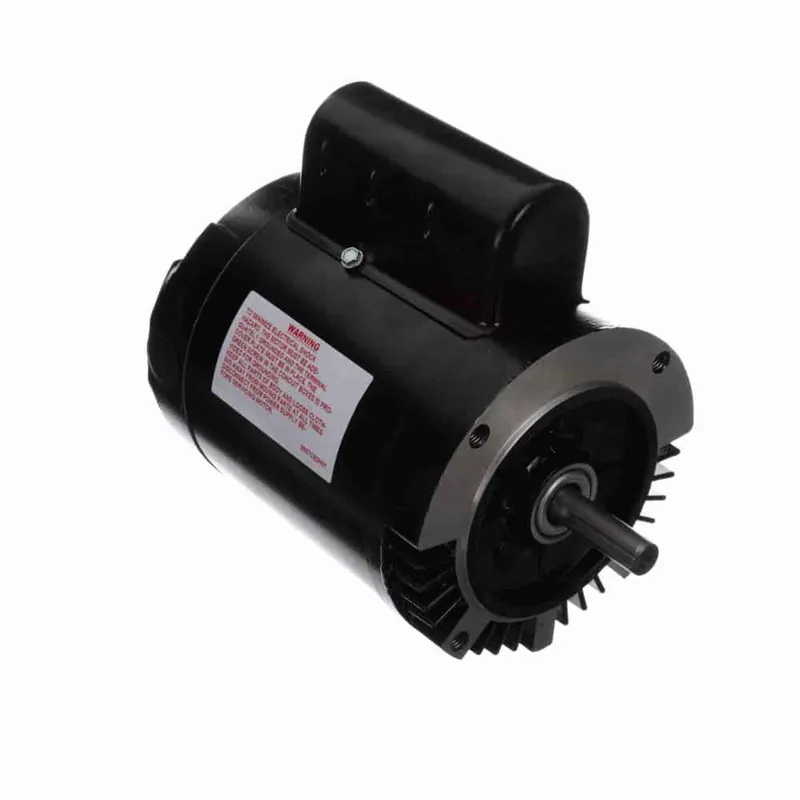

1/3HP 1PH 56C 4P ODP 1800 115/230V

Description

Product Information

Brand Century
Mfr # K1034LV1
Wright’s # CEN K1034LV1
Country of Origin MEX

Specifications

C Dim 10.56″
Electrical Type Capacitor Start Induction Run
Enclosure ODP
Frame 56C
Frequency 60 Hz
HP 0.33 HP
HP2 1/3 HP
Insulation Class B
kW 0.25kW
Material Rolled Steel
MaAmbient 40°C
Number of Poles 4
Number of Speeds 1
Overload Protection No Protection
Phase 1
Rated Current 6.8/3.4
Rated Voltage 115/230
Rotation Reversible
RPM 1725
Service Factor 1.5
Shaft Diameter 0.625″
Speed 1800
Starting Method
