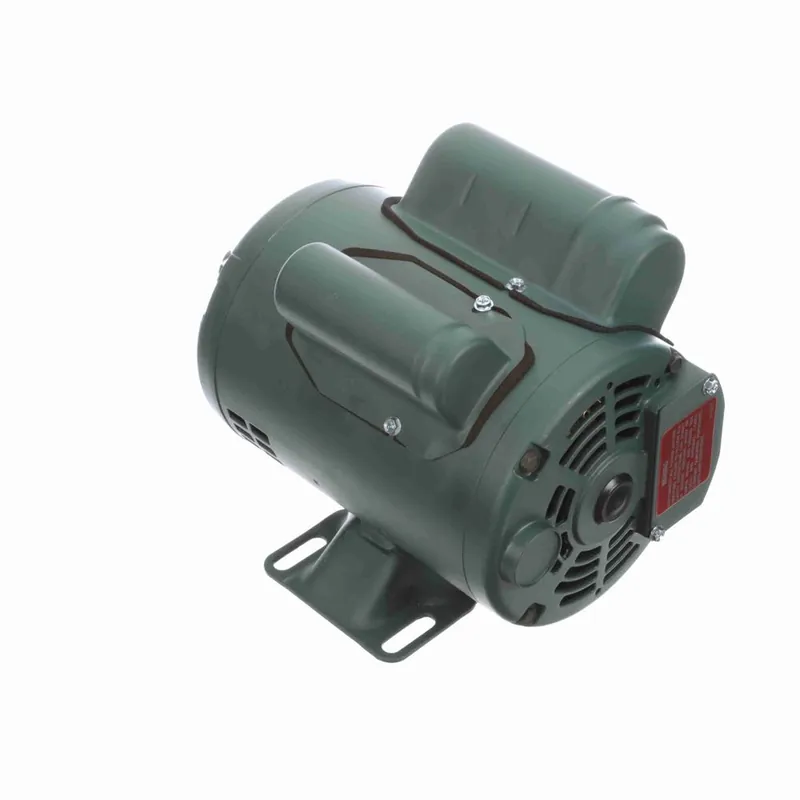

1/3HP 1PH 56 ODP 3600 115/230V

Description

Product Information

Brand Leeson
Sub-Brand ecoSaver™
Mfr # E100336.00
Wright’s # LSN E100336.00
Country of Origin MEX

Specifications

C Dim 10.49″
Electrical Type Capacitor Start Capacitor Run
Enclosure Drip Proof
Full Load Efficiency 70.5
Frame 56
Frequency 60
HP 0.33 HP
HP2 1/3 HP
Insulation Class B
kW 0.25kW
Material Rolled Steel
MaAmbient 40°C
Mounting Type Rigid Base
Overload Protection No Protection
Phase 1
Rated Current 3.0/1.5
Rated Voltage 115/230
Rotation Selective Counterclockwise
RPM 3450
Service Factor 1.35
Shaft Diameter 0.625″
Starting Method
