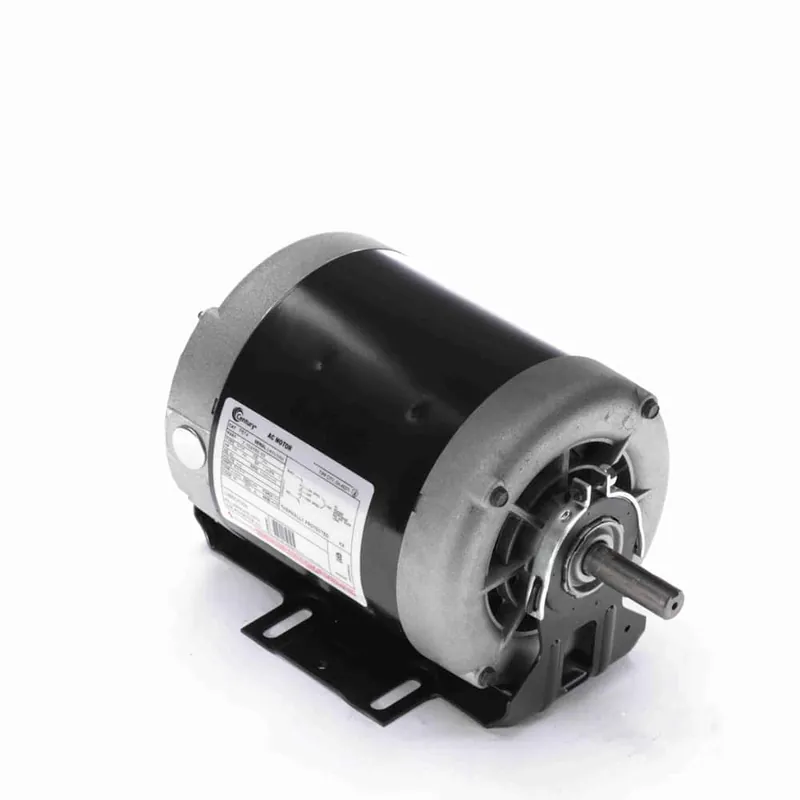

1/3HP 1PH 56 ODP 2spd 1725 115V BM

Description

Product Information

Brand Century
Mfr # F674
Wright’s # CEN F674
Country of Origin MEX

Specifications

C Dim 11.07″
Electrical Type Split Phase, Induction Run, Multi-Speed
Enclosure ODP
Frame 56
Frequency 60 Hz
HP 0.33 HP
HP2 1/3-.09 HP
Insulation Class A
kW 0.75kW
Material Rolled Steel
MaAmbient 40°C
Number of Poles 4/6
Number of Speeds 2
Overload Protection Thermally Protected
Phase 1
Rated Current 5.0/3.0
Rated Voltage 115
Rotation Reversible Counterclockwise
RPM 1725
Service Factor 1.35
Shaft Diameter 0.625″
Speed 1725/1140
Starting Method
