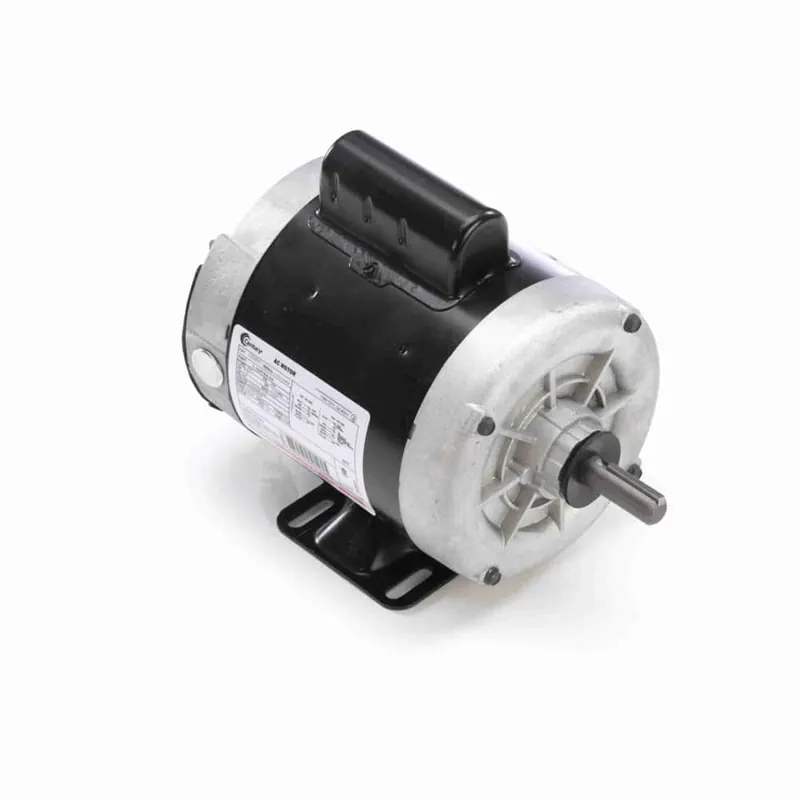

1/3HP 1PH 56 4P TENV 1725 115/208-230V
Description
Product Information
Brand Century
Mfr # C220V1
Wright’s # CEN C220V1
Country of Origin MEX
Specifications
C Dim 11.13″
Electrical Type Capacitor Start, Induction Run, Single Or Dual Voltage
Enclosure TENV
Frame 56
Frequency 60 Hz
HP 0.33 HP
HP2 1/3 HP
Insulation Class B
kW 0.25kW
Material Rolled Steel
MaAmbient 40°C
Number of Poles 4
Number of Speeds 1
Overload Protection No Protection
Phase 1
Rated Current 5.2/2.5-2.6
Rated Voltage 115/208-230
Rotation Reversible Clockwise
RPM 1725
Service Factor 1.15
Shaft Diameter 0.625″
Speed 1725
Starting Method
