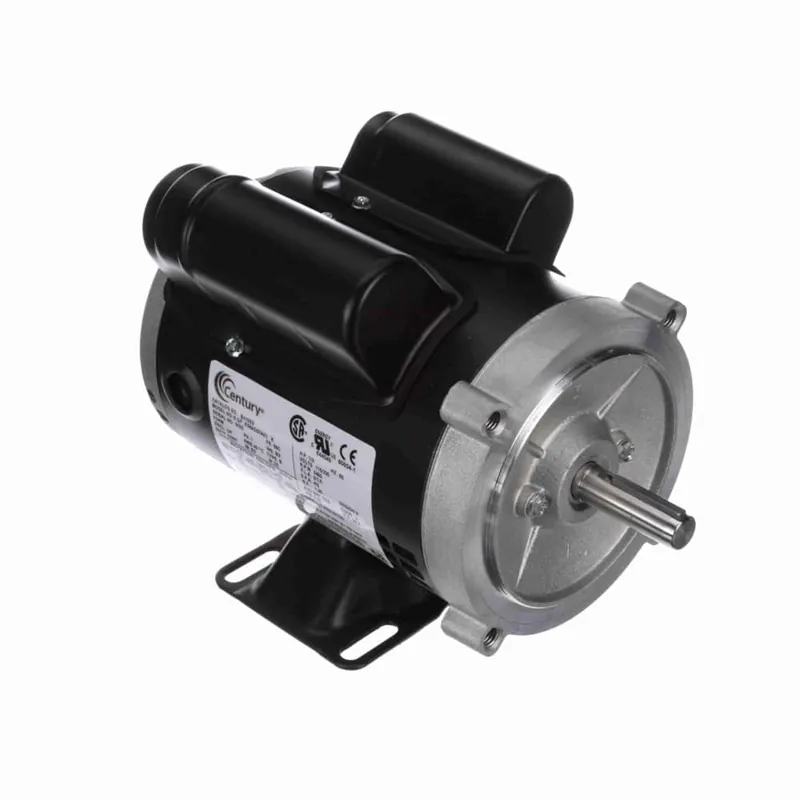

1/3HP 1PH 56 2P ODP 3450 115/230V AOL

Description

Product Information

Brand Century
Mfr # B416ES
Wright’s # CEN B416ES
Country of Origin MEX

Specifications

C Dim 10.44″
Electrical Type Capacitor Start Capacitor Run
Enclosure ODP
Frame 56
Frequency 60 Hz
HP 0.33 HP
HP2 1/3 HP
Insulation Class B
kW 0.25kW
Material Rolled Steel
MaAmbient 40°C
Number of Poles 2
Number of Speeds 1
Overload Protection Automatic
Phase 1
Rated Current 3.0/1.5
Rated Voltage 115/230
Rotation Clockwise/Counterclockwise
RPM 3450
Service Factor 1.35
Shaft Diameter 0.625″
Speed 3450
Starting Method
