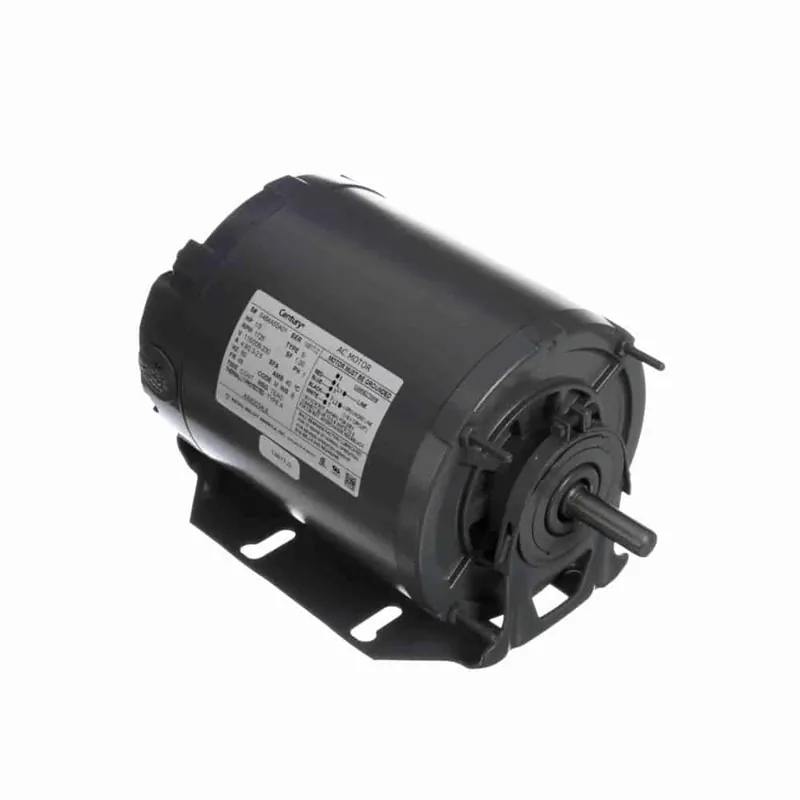

1/3HP 1PH 5.6″ TE 1725 REV 115/208-230V BM

Description

Product Information

Brand Century
Mfr # ARB2034L6
Wright’s # CEN ARB2034L6
Country of Origin MEX

Specifications

C Dim 9.8″
Electrical Type Split Phase
Enclosure TEAO
Full Load Efficiency 62
Frame 48
Frequency 60 Hz
HP 0.33 HP
HP2 1/3 HP
Insulation Class B
kW 0.25kW
Material Rolled Steel
MaAmbient 40°C
Number of Poles 4
Number of Speeds 1
Overload Protection Automatic
Phase 1
Rated Current 4.9/2.3-2.5
Rated Voltage 115/208-230
Rotation Reversible
RPM 1725
Service Factor 1
Shaft Diameter 0.655″
Speed 1725
Starting Method
