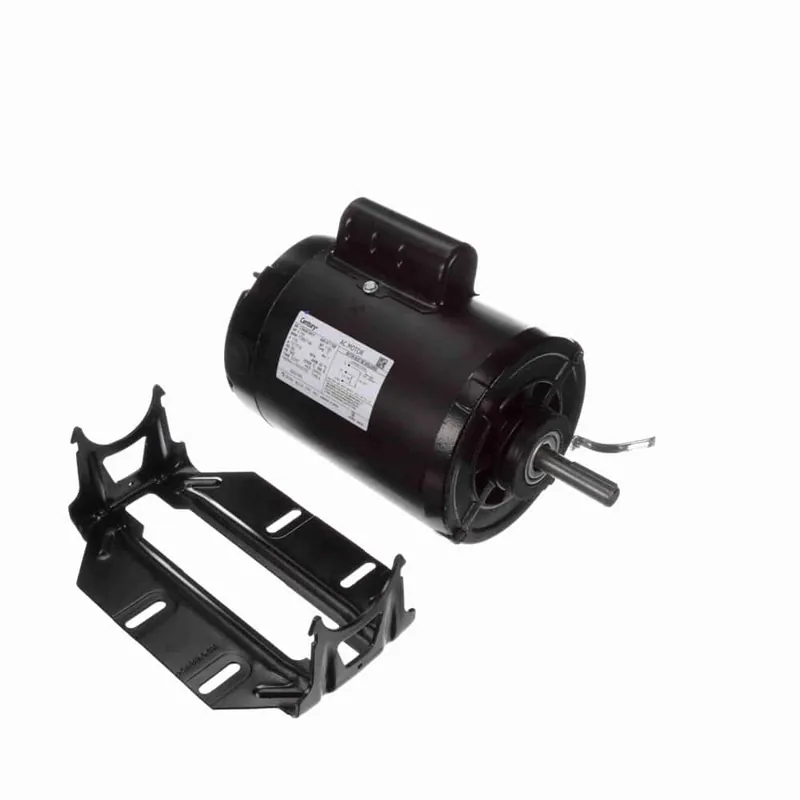

1.33HP 1PH 56Z ODP 2spd 1800 115V RF

Description

Product Information

Brand Century
Mfr # SV2104L
Wright’s # CEN SV2104L
Country of Origin MEX

Specifications

C Dim 12.09″
Electrical Type Capacitor Start Induction Run
Enclosure ODP
Frame 56Z
Frequency 60 Hz
HP 1.33 HP
HP2 1.33 HP
Insulation Class B
kW 0.99kW
Material Rolled Steel
MaAmbient 40°C
Number of Poles 4/6
Number of Speeds 2
Overload Protection Automatic
Phase 1
Rated Current 12.7/7.6
Rated Voltage 115
Rotation Counterclockwise Lead End
RPM 1725
Service Factor 1
Shaft Diameter 0.625″
Speed 1800/1200
Starting Method
