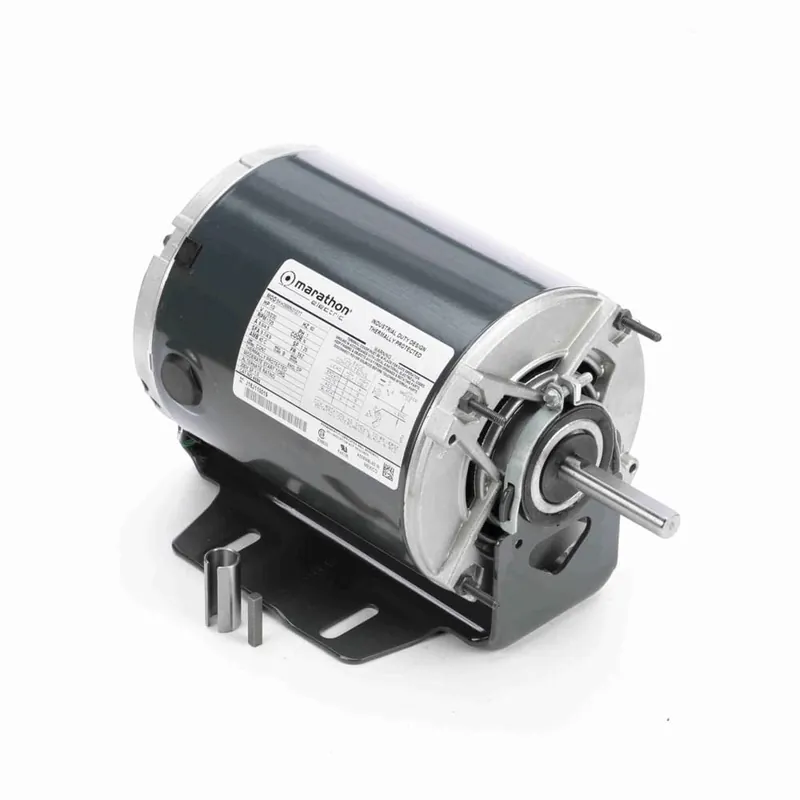

1/2HP SpP 56Z ODP 1725 115/230V BM

Description

Product Information

Brand Marathon
Mfr # 4684
Wright’s # MAR 4684
Country of Origin MEX

Specifications

C Dim 10.8″
Electrical Type Split Phase
Enclosure ODP
Full Load Efficiency 57.6
Frame 56Z
Frequency 60 Hz
HP 0.5 HP
HP2 1/2 HP
Insulation Class B
kW 0.37kW
Material Rolled Steel
MaAmbient 40°C
Mounting Type Resilient Base
Number of Poles 4
Number of Speeds 1
Overload Protection Automatic
Phase 1
Rated Current 8.9,4.5
Rated Voltage 115/230
Rotation Counterclockwise/Clockwise
RPM 1725
Service Factor 1.25
Shaft Diameter 0.5″
Speed 1725
Starting Method
