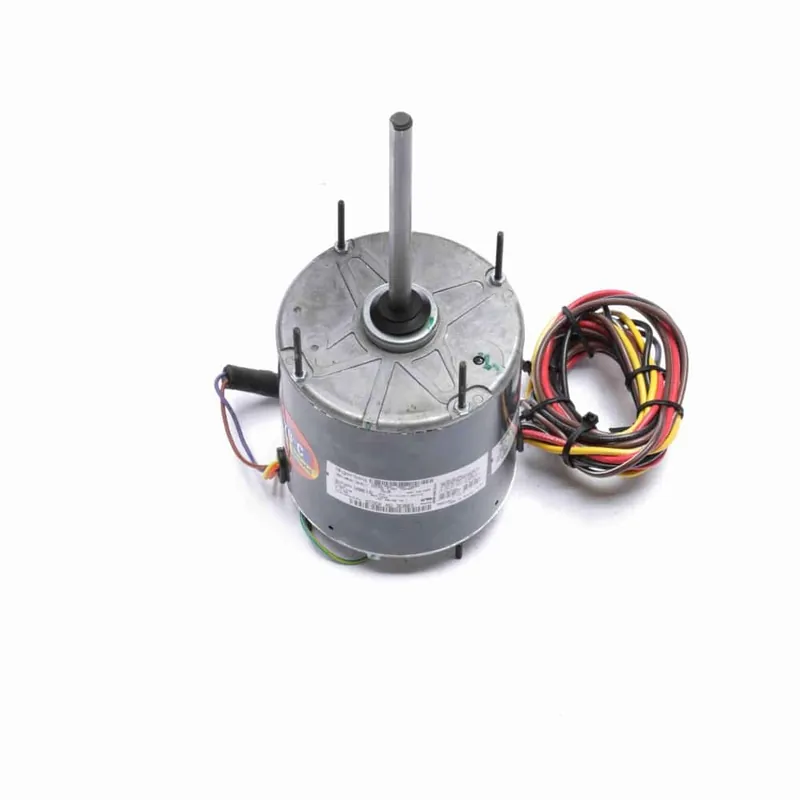

1/2HP PSC 5.6″ TE 2spd 1625 REV 208-230V 5uF CF

Description

Product Information

Brand Genteq
Mfr # 3C003
Wright’s # GEN 3C003

Specifications

C Dim 12.71″
Electrical Type Permanent Split Capacitor
Enclosure TEAO
Frame 5.6″
Frequency 60 Hz
HP 0.5 HP
HP2 1/2 HP
Insulation Class B
kW 0.37kW
Material Rolled Steel
MaAmbient 70°C
Number of Poles 4
Number of Speeds 2
Overload Protection Thermally Protected
Phase 1
Rated Current 2.50
Rated Voltage 208-230
Rotation Reversible
RPM 1625
Service Factor 1
Shaft Diameter 0.5″
Speed 1625
