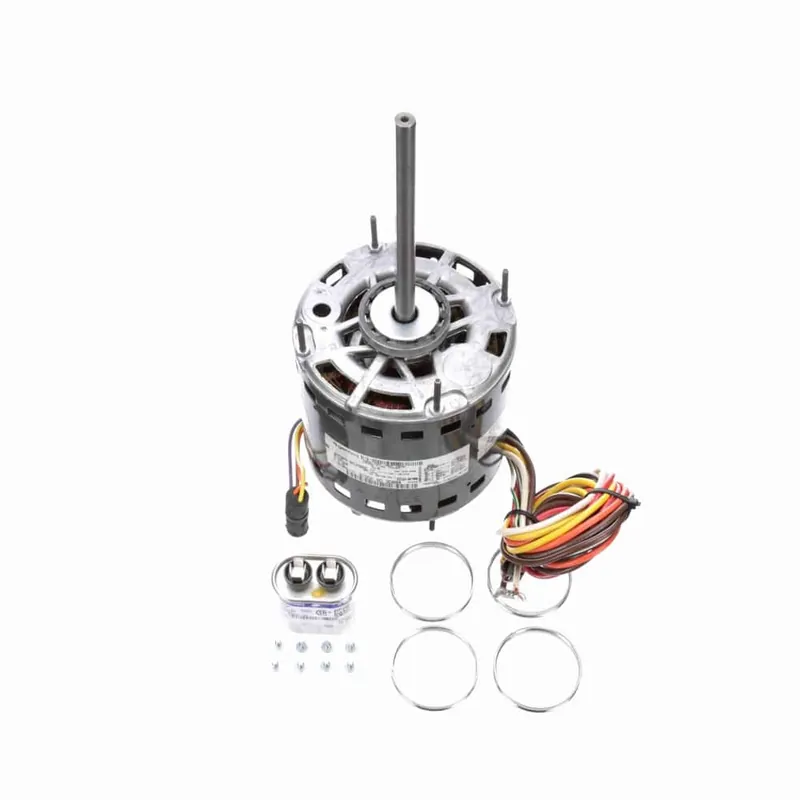

1/2HP PSC 5.6″ OAO 4spd 1075 REV 277/230V 5uF-inc BM

Description

Product Information

Brand Genteq
Mfr # 3D004
Wright’s # GEN 3D004

Specifications

C Dim 12.89″
Electrical Type Permanent Split Capacitor
Enclosure OAO
Frame 5.6″
Frequency 60 Hz
HP 0.5 HP
HP2 1/2 HP
Insulation Class B
kW 0.37kW
Material Rolled Steel
MaAmbient 40°C
Number of Poles 6
Number of Speeds 4
Overload Protection Thermally Protected
Phase 1
Rated Current 3.10
Rated Voltage 277/230
Rotation Reversible
RPM 1075
Service Factor 1
Shaft Diameter 0.5″
Speed 1075
