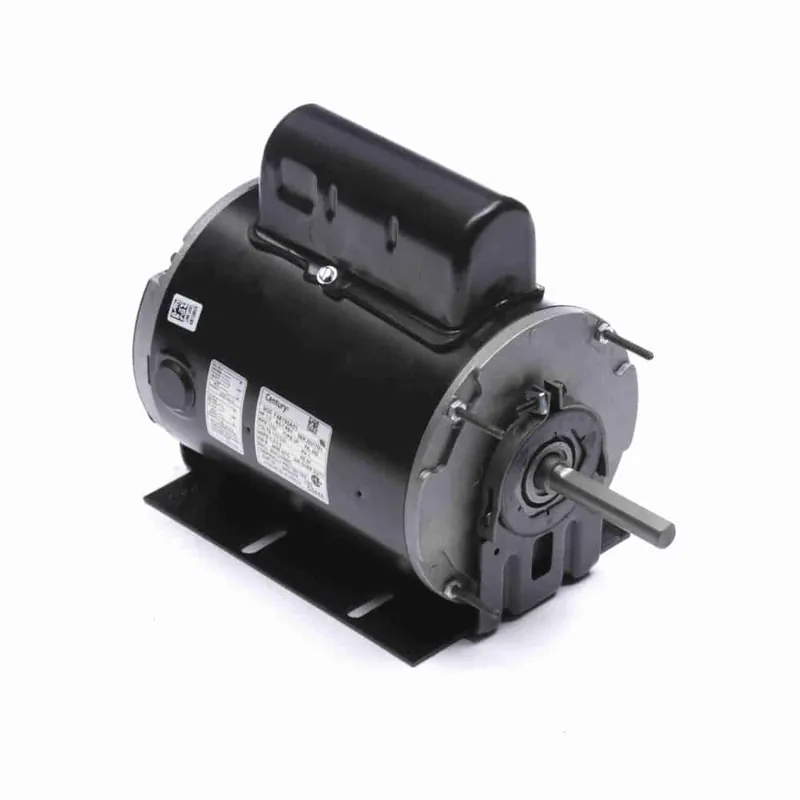

1/2HP PSC 48Z 4P TEAO 1700 115/230V 25uF-inc AOL BM

Description

Product Information

Brand Century
Mfr # C044A
Wright’s # CEN C044A
Country of Origin MEX

Specifications

C Dim 11″
Electrical Type Permanent Split Capacitor
Enclosure TEAO
Frame 48Z
Frequency 60 Hz
HP 0.5 HP
HP2 1/2 HP
Insulation Class B
kW 0.37kW
Material Rolled Steel
MaAmbient 40°C
Number of Poles 4
Number of Speeds 1
Overload Protection Automatic
Phase 1
Rated Current 5.5/2.8
Rated Voltage 115/230
Rotation Reversible
RPM 1700
Service Factor 1
Shaft Diameter 0.5″
Speed 1700
Starting Method
