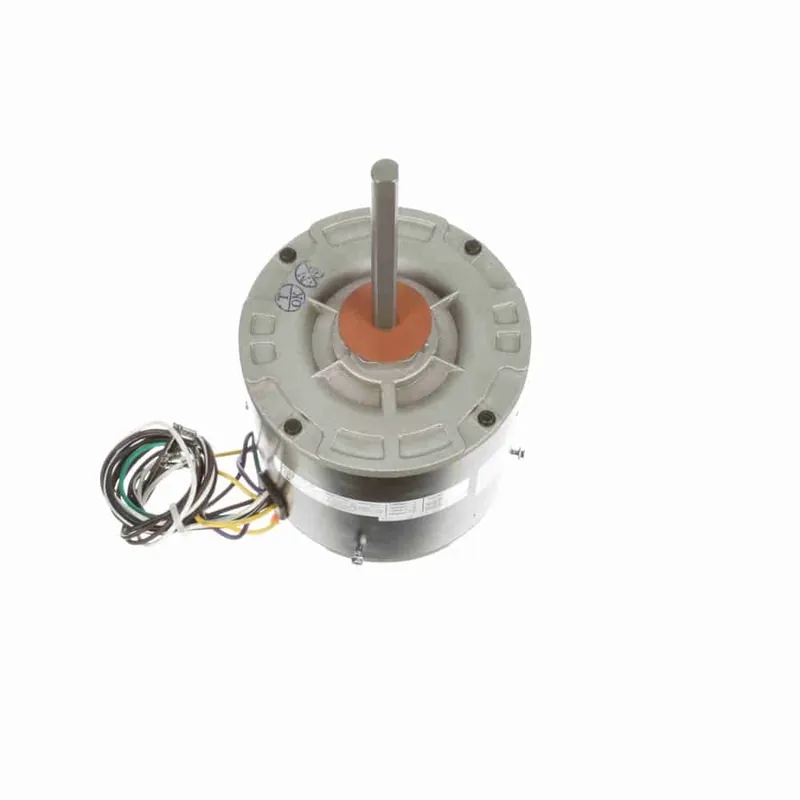

1/2HP PSC 48Y TE 825 208-230V 10uF CF

Description

Product Information

Brand Century
Sub-Brand PRO-E SERIES®
Mfr # EM3746F
Wright’s # CEN EM3746F
Country of Origin IND

Specifications

C Dim 12.21″
Electrical Type Permanent Split Capacitor
Enclosure TEAO
Frame 48Y
Frequency 60 Hz
HP 0.5 HP
HP2 1/2 HP
Insulation Class F
kW 0.37kW
Material Rolled Steel
MaAmbient 70°C
Number of Poles 8
Number of Speeds 1
Overload Protection Automatic
Phase 1
Rated Current 2.2-2.5
Rated Voltage 208-230
Rotation Reversible
RPM 825
Service Factor 1
Shaft Diameter 0.5″
Speed 825
Starting Method
