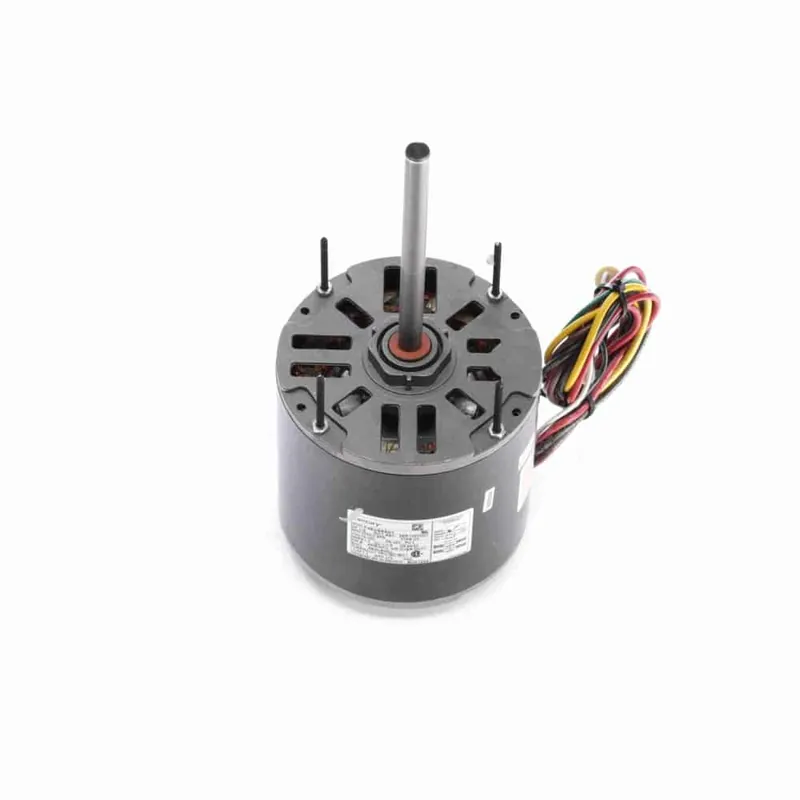

1/2HP PSC 48Y TE 2spd 1625 460V 5uF-inc BM

Description

Product Information

Brand Century
Mfr # BDH1054
Wright’s # CEN BDH1054

Specifications

C Dim 12.24″
Electrical Type Permanent Split Capacitor
Enclosure TEAO
Frame 48Y
Frequency 60 Hz
HP 0.5 HP
HP2 1/2 HP
Insulation Class B
kW 0.37kW
Material Rolled Steel
MaAmbient 60°C
Number of Poles 4
Number of Speeds 2
Overload Protection Automatic
Phase 1
Rated Current 1.4
Rated Voltage 460
Rotation Reversible
RPM 1625
Service Factor 1
Shaft Diameter 0.5″
Speed 1625
Starting Method
