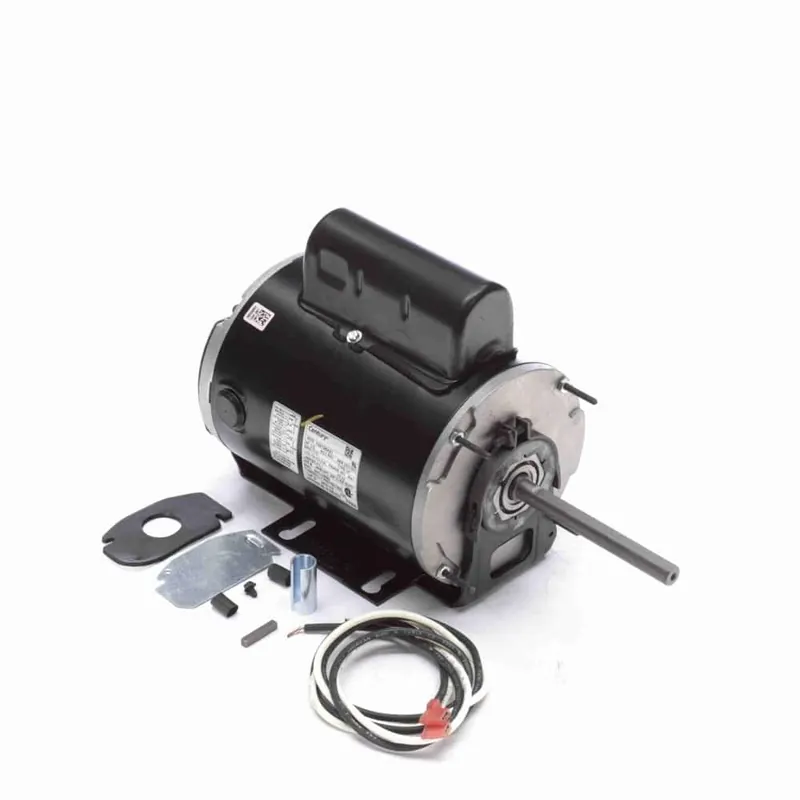

1/2HP PSC 48Y TE 1725 REV 115/230V 25uF-inc

Description

Product Information

Brand Century
Mfr # 769A
Wright’s # CEN 769A
Country of Origin MEX

Specifications

C Dim 13″
Electrical Type Permanent Split Capacitor
Enclosure TEAO
Frame 48Y
Frequency 60 Hz
HP 0.5 HP
HP2 1/2 HP
Insulation Class B
kW 0.37kW
Material Rolled Steel
MaAmbient 60°C
Number of Poles 4
Number of Speeds 1
Overload Protection Automatic
Phase 1
Rated Current 6.2/3.1
Rated Voltage 115/230
Rotation Reversible
RPM 1725
Service Factor 1
Shaft Diameter 0.5″
Speed 1725
Starting Method
