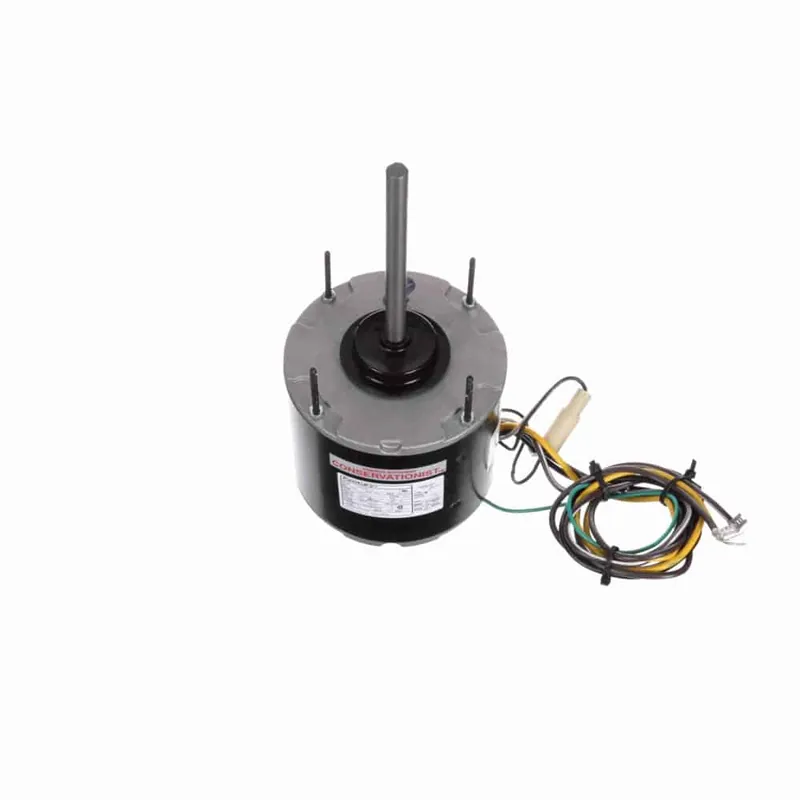

1/2HP PSC 48Y TE 1075 208-230V 5uF CF

Description

Product Information

Brand Century
Mfr # FS1056S
Wright’s # CEN FS1056S
Country of Origin CHN

Specifications

C Dim 11.8″
Electrical Type Permanent Split Capacitor
Enclosure TEAO
Frame 48Y
Frequency 60 Hz
HP 0.5 HP
HP2 1/2 HP
Insulation Class B
kW 0.37kW
Material Rolled Steel
MaAmbient 60°C
Number of Poles 6
Number of Speeds 1
Overload Protection Automatic
Phase 1
Rated Current 4.5
Rated Voltage 208-230
Rotation Reversible
RPM 1075
Service Factor 1
Shaft Diameter 0.5″
Speed 1075
Starting Method
