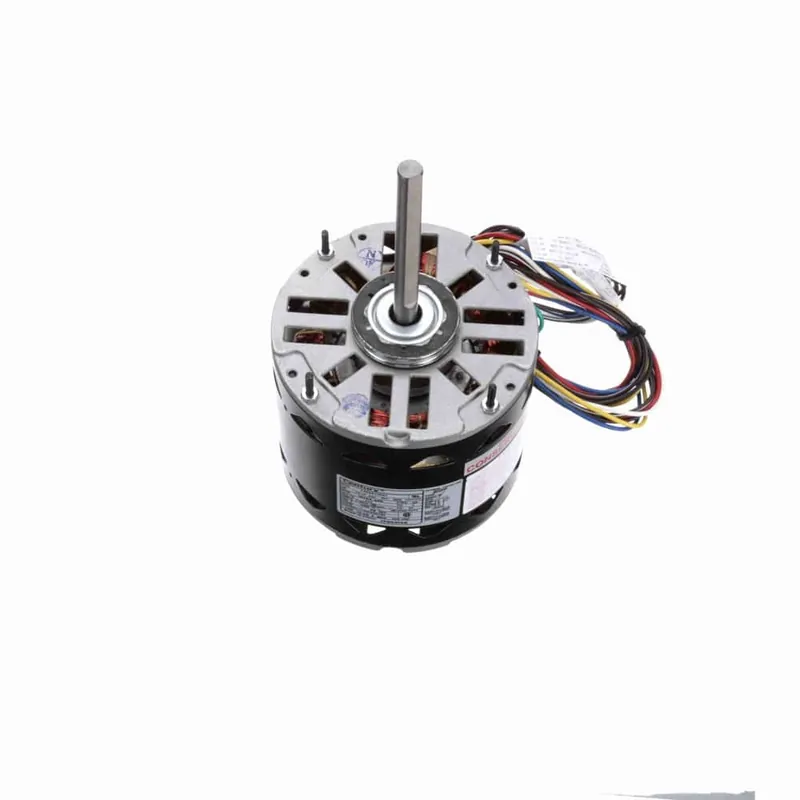

1/2HP PSC 48Y ODP 4spd 1075 REV 277V 5uF-inc BM

Description

Product Information

Brand Century
Sub-Brand MASTERFIT PRO®
Mfr # 7FD6000A
Wright’s # CEN 7FD6000A
Country of Origin MEX

Specifications

C Dim 10.36″
Electrical Type Permanent Split Capacitor
Enclosure ODP
Frame 48Y
Frequency 60 Hz
HP 0.5 HP
HP2 1/2-1/6 HP
Insulation Class B
kW 0.37kW
Material Rolled Steel
MaAmbient 40°C
Number of Poles 6
Number of Speeds 4
Overload Protection Automatic
Phase 1
Rated Current 3.8
Rated Voltage 277
Rotation Reversible
RPM 1075
Service Factor 1
Shaft Diameter 0.5″
Speed 1075
Starting Method
