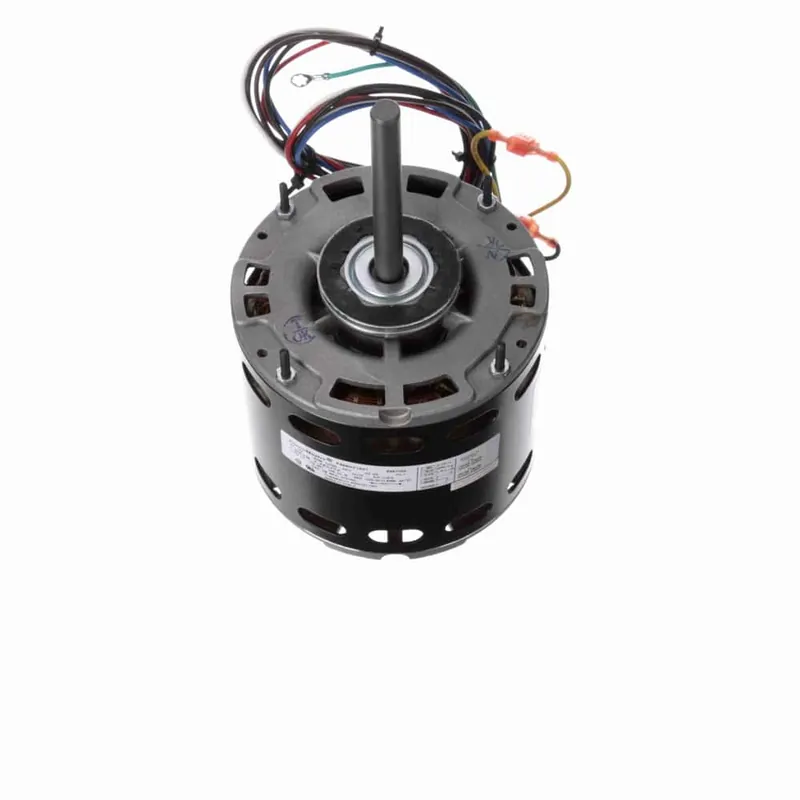

1/2HP PSC 48Y ODP 3spd 1075 208-230V 10uF BM

Description

Product Information

Brand Century
Sub-Brand PRO-E SERIES®
Mfr # EM3588
Wright’s # CEN EM3588
Country of Origin IND

Specifications

C Dim 9.86″
Electrical Type Permanent Split Capacitor
Enclosure ODP
Frame 48Y
Frequency 60 Hz
HP 0.5 HP
HP2 1/2 HP
Insulation Class B
kW 0.37kW
Material Rolled Steel
MaAmbient 40°C
Number of Poles 6
Number of Speeds 3
Overload Protection Automatic
Phase 1
Rated Current 3.4-2.3-1.6
Rated Voltage 208-230
Rotation Reversible
RPM 1075
Service Factor 1
Shaft Diameter 0.5″
Speed 1075
Starting Method
