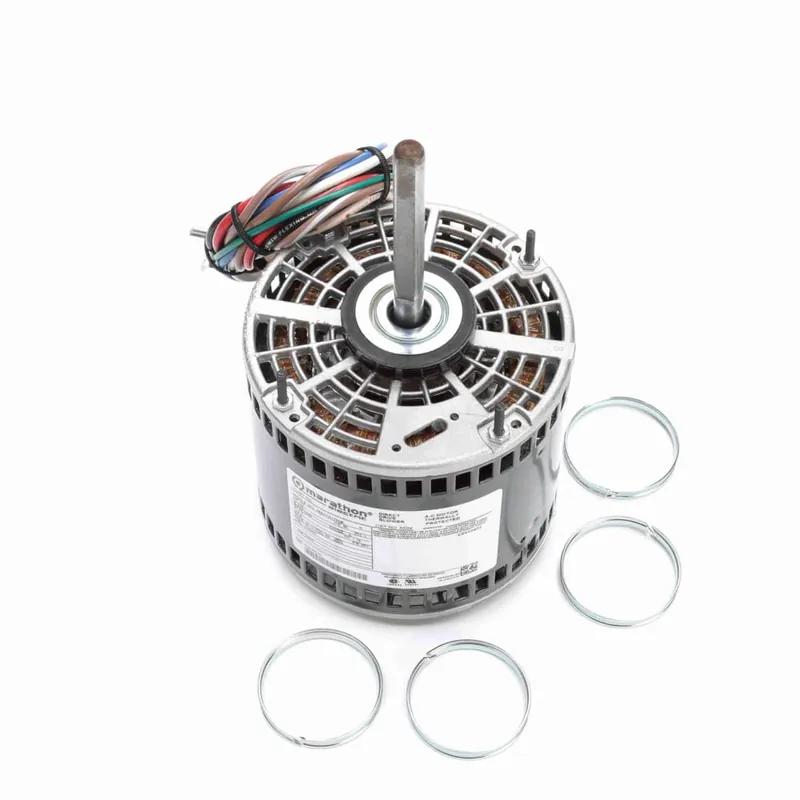

1/2HP PSC 48Y OAO 3spd 1075 115V BM

Description

Product Information

Brand Marathon
Mfr # X004
Wright’s # MAR X004
Country of Origin MEX

Specifications

C Dim 10.25″
Electrical Type Permanent Split Capacitor
Enclosure ODP
Full Load Efficiency 63.4
Frame 48Y
Frequency 60 Hz
HP 0.5 HP
HP2 1/2 HP
Insulation Class B
kW 0.37kW
Material Rolled Steel
MaAmbient 40°C
Mounting Type Resilient Ring – Extended Studs
Number of Poles 6
Number of Speeds 3
Overload Protection Automatic
Phase 1
Rated Current 6.2
Rated Voltage 115
Rotation Selective Counterclockwise
RPM 1075
Service Factor 1.15
Shaft Diameter 0.5″
Speed 1075
Starting Method
