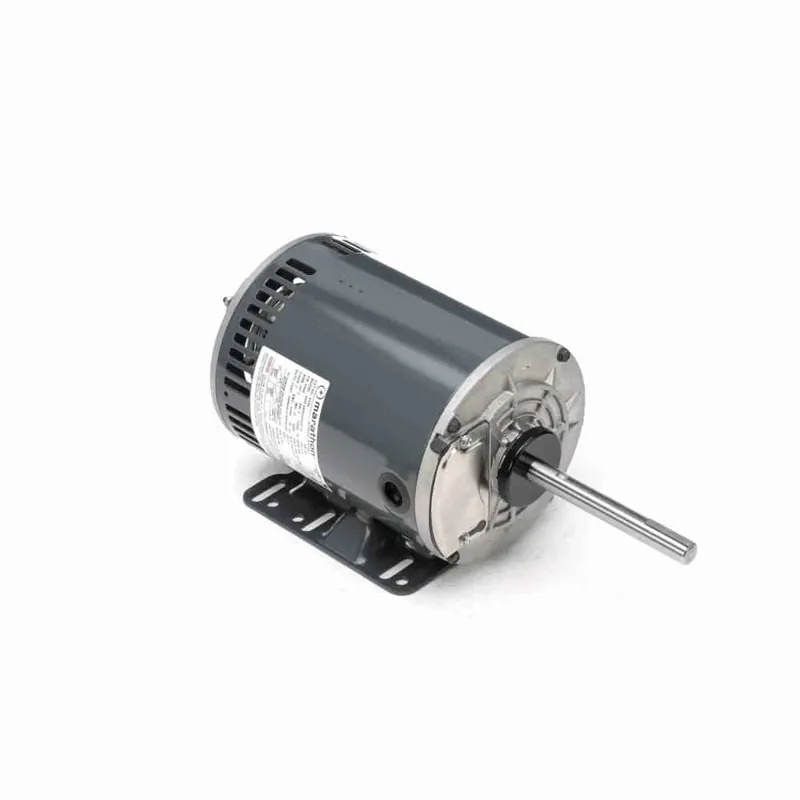

1/2HP 3PH 6.5″ OAO 900 208-230/460V WB 56HZ RF

Description

Product Information

Brand Marathon
Mfr # X529
Wright’s # MAR X529
Country of Origin MEX

Specifications

C Dim 14.68″
Electrical Type Squirrel Cage Induction Run
Enclosure ODP
Full Load Efficiency 65
Frame 56HZ
Frequency 60 Hz
HP 0.5 HP
HP2 1/2 HP
Insulation Class H
kW 0.37kW
Material Rolled Steel
MaAmbient 70°C
Mounting Type Rigid Base
Number of Poles 8
Number of Speeds 1
Overload Protection Automatic
Phase 3
Rated Current 2.9-3/1.5 & 2.6/1.3
Rated Voltage 208-230/460
Rotation Reversible
RPM 850
Service Factor 1
Shaft Diameter 0.625″
Speed 850 & 715
Starting Method
