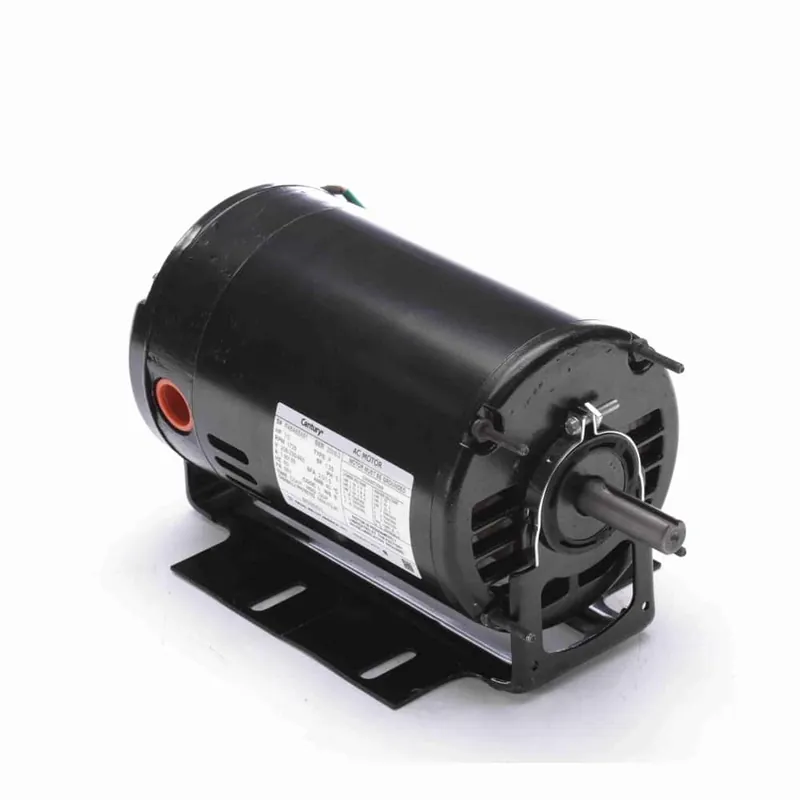

1/2HP 3PH 56Y ODP 1725 208-230/460V BM

Description

Product Information

Brand Century
Mfr # BK3054V1
Wright’s # CEN BK3054V1
Country of Origin MEX

Specifications

C Dim 11.44″
Electrical Type Polyphase
Enclosure ODP
Frame 56Y
Frequency 60 Hz
HP 0.5 HP
HP2 1/2 HP
Insulation Class B
kW 0.37kW
Material Rolled Steel
MaAmbient 40°C
Number of Poles 4
Number of Speeds 1
Overload Protection Automatic
Phase 3
Rated Current 1.90/.95
Rated Voltage 208-230/460
Rotation Reversible
RPM 1725
Service Factor 1.25
Shaft Diameter 0.875″
Speed 1725
Starting Method
