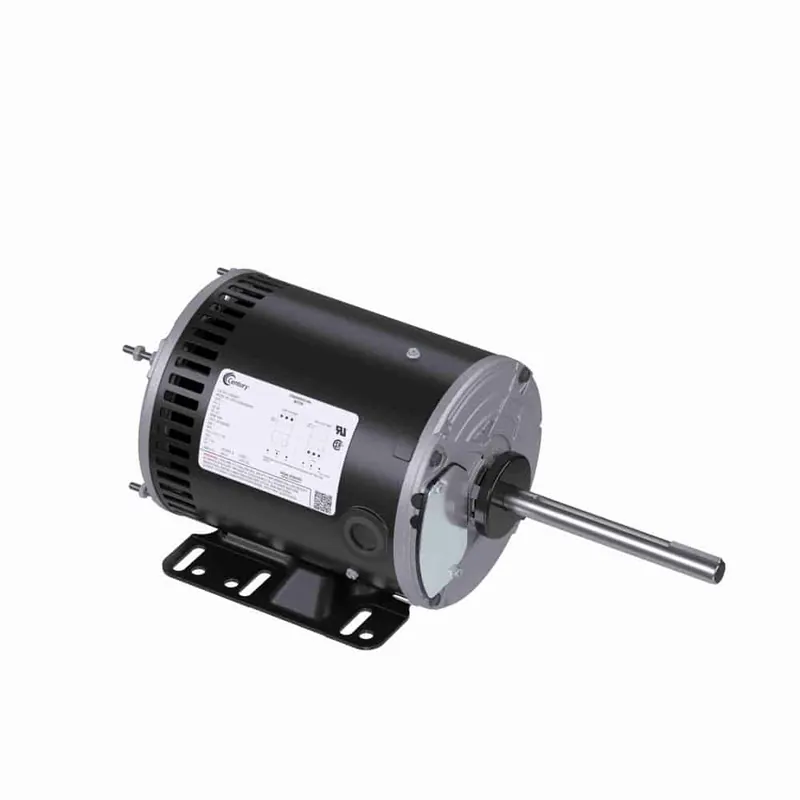

1/2HP 3PH 56HZ OAO 1140 230/460V CF
Description
Product Information
Brand Century
Sub-Brand JuggerNaut®
Mfr # H1055AV1
Wright’s # CEN H1055AV1
Country of Origin MEX
Specifications
Electrical Type Squirrel Cage Induction Run
Enclosure OAO
Full Load Efficiency 68
Frame 56HZ
Frequency 60 Hz
HP 0.5 HP
HP2 1/2 HP
Insulation Class F
kW 0.37kW
Material Rolled Steel
MaAmbient 70°C
Number of Poles 6
Number of Speeds 1
Overload Protection Thermally Protected
Phase 3
Rated Current 2.7/1.35
Rated Voltage 230/460
Rotation Reversible
RPM 1140
Service Factor 1
Shaft Diameter 0.625″
Speed 1140
