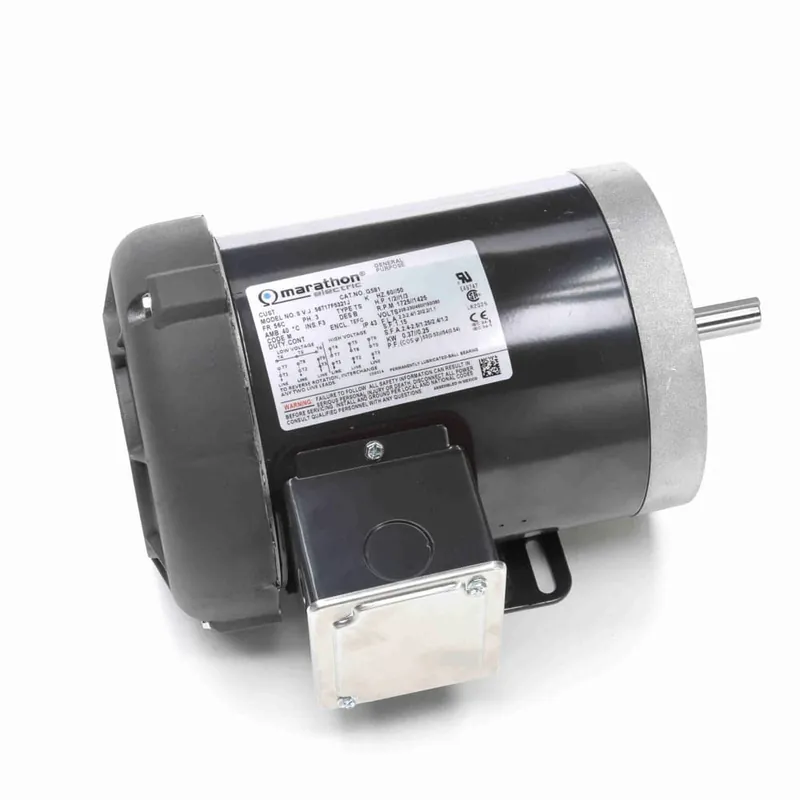

1/2HP 3PH 56C TEFC 1800 208-230/460V WB

Description

Product Information

Brand Marathon
Mfr # G581
Wright’s # MAR G581
Country of Origin MEX

Specifications

C Dim 11.81″
Electrical Type Squirrel Cage Inverter Rated
Enclosure Totally Enclosed Fan Cooled
Full Load Efficiency 72
Frame 56C
Frequency 60
HP 0.5 HP
HP2 0.50 & 0.33 HP
Insulation Class F
kW 0.37kW
Material Rolled Steel
MaAmbient 40°C
Mounting Type Bolt-on Base
Number of Poles 4
Number of Speeds 1
Overload Protection No Protection
Phase 3
Rated Current 2.3-2.4/1.2 & 2.2/1.1
Rated Voltage 208-230/460V
Rotation Reversible
RPM 1725
Service Factor 1.15
Shaft Diameter 0.625″
Speed 1725 & 1425
Starting Method
