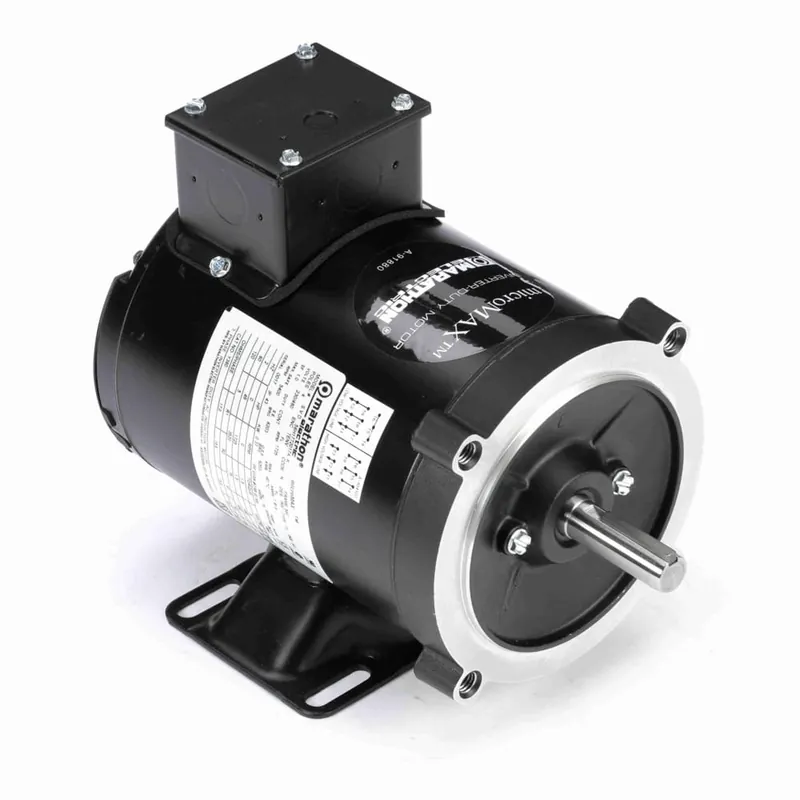

1/2HP 3PH 56C 4P TENV 1800 230/460V WB INV

Description

Product Information

Brand Marathon
Sub-Brand microMAX™ Inverter Duty
Mfr # Y360
Wright’s # MAR Y360
Country of Origin MEX

Specifications

C Dim 9.81″
Electrical Type Squirrel Cage Inverter Duty
Enclosure ODP
Full Load Efficiency 74
Frame 56C
Frequency 60 Hz
HP 0.5 HP
HP2 1/2 HP
Insulation Class H
kW 0.37kW
Material Rolled Steel
MaAmbient 40°C
Mounting Type Rigid Base
Number of Poles 4
Number of Speeds 1
Overload Protection No Protection
Phase 3
Rated Current 1.8/0.90
Rated Voltage 230/460
Rotation Reversible
RPM 1725
Service Factor 1
Shaft Diameter 0.625″
Speed 1725
Starting Method
