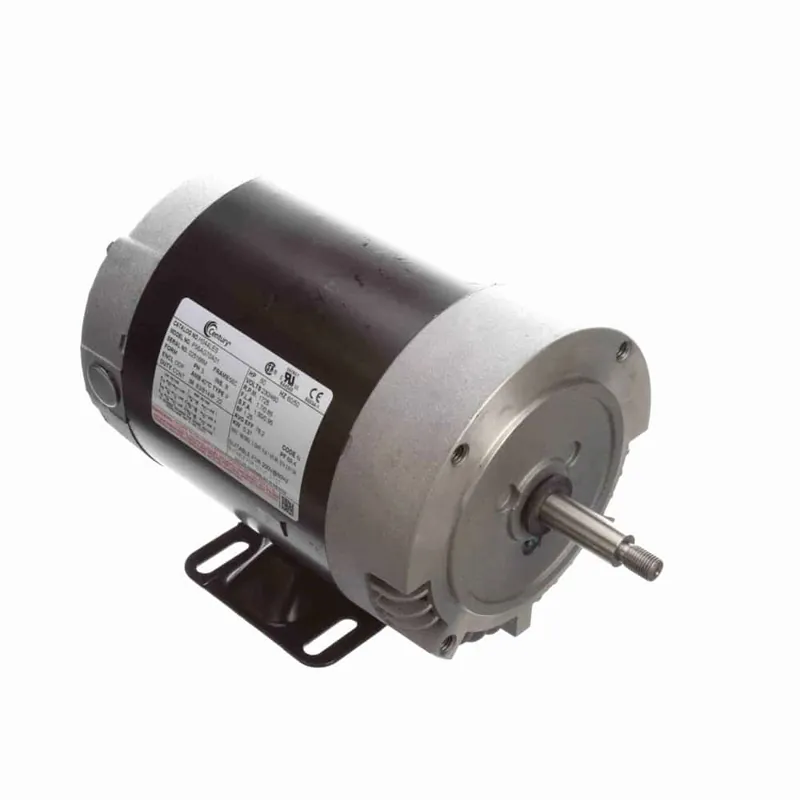

1/2HP 3PH 56C 4P ODP 1725 230/460V

Description

Product Information

Brand Century
Mfr # H044LES
Wright’s # CEN H044LES
Country of Origin MEX

Specifications

C Dim 11.82″
Electrical Type Polyphase
Enclosure ODP
Full Load Efficiency 78.2
Frame 56C
Frequency 60 Hz
HP 0.5 HP
HP2 1/2 HP
Insulation Class B
kW 0.37kW
Material Rolled Steel
MaAmbient 40°C
Number of Poles 4
Number of Speeds 1
Overload Protection No Protection
Phase 3
Rated Current 1.7/0.85
Rated Voltage 230/460
Rotation Clockwise/Counterclockwise
RPM 1725
Service Factor 1.25
Shaft Diameter 0.625″
Speed 1725
Starting Method
