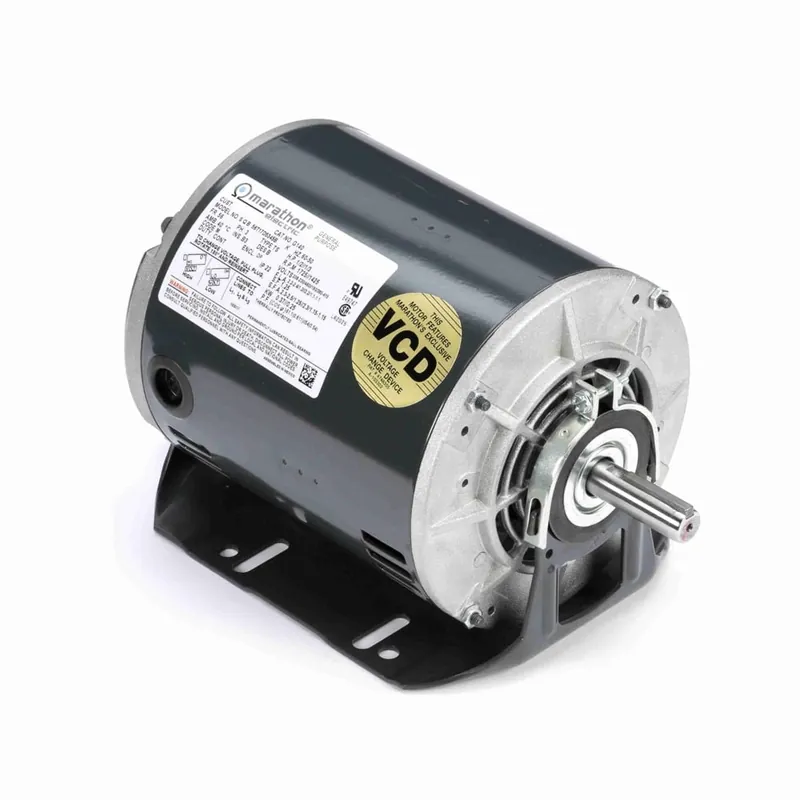

1/2HP 3PH 56 ODP 1800 208-230/460V BM

Description

Product Information

Brand Marathon
Mfr # G140
Wright’s # MAR G140
Country of Origin MEX

Specifications

C Dim 10.85″
Electrical Type Squirrel Cage Induction Run
Enclosure ODP
Full Load Efficiency 68
Frame 56
Frequency 60 Hz
HP 0.5 HP
HP2 1/2 HP
Insulation Class B
kW 0.37kW
Material Rolled Steel
MaAmbient 40°C
Mounting Type Resilient Base
Number of Poles 4
Number of Speeds 1
Overload Protection Automatic
Phase 3
Rated Current 2.2-2.4/1.2 & 2.2/1.1-1.1
Rated Voltage 208-230/460
Rotation Reversible
RPM 1725
Service Factor 1.25
Shaft Diameter 0.625″
Speed 1725 & 1425
Starting Method
