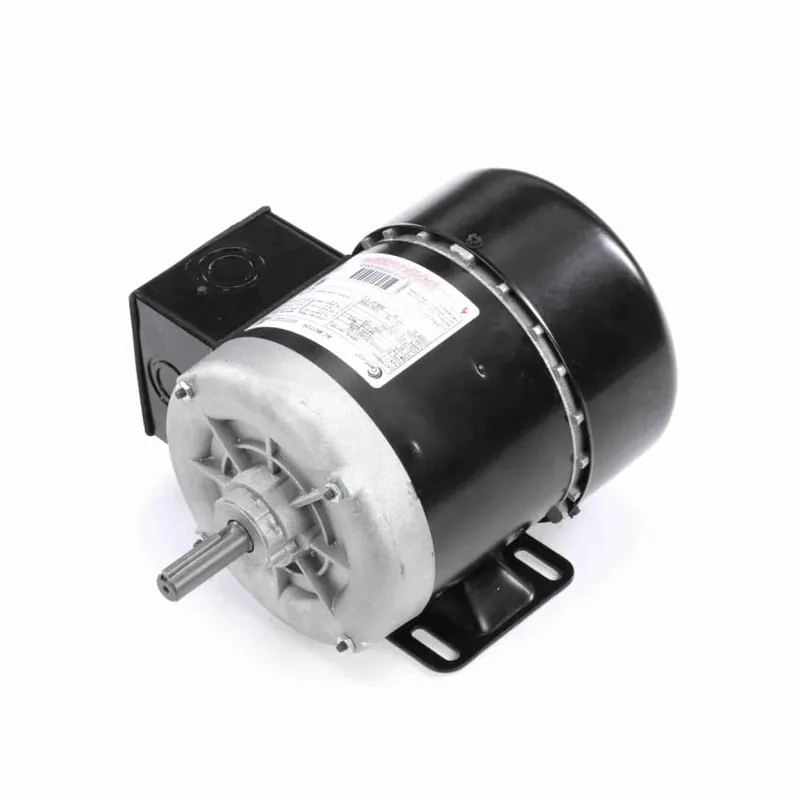

1/2HP 3PH 56 4P TEFC 1725 208-230/460V

Description

Product Information

Brand Century
Mfr # H868L
Wright’s # CEN H868L
Country of Origin MEX

Specifications

C Dim 10.99″
Electrical Type Polyphase, Induction Type, Single Or Dual Voltage
Enclosure TEFC
Frame 56
Frequency 60 Hz
HP 0.5 HP
HP2 1/2 HP
Insulation Class B
kW 0.37kW
Material Rolled Steel
MaAmbient 40°C
Number of Poles 4
Number of Speeds 1
Overload Protection No Protection
Phase 3
Rated Current 1.6-1.8/.9
Rated Voltage 208-230/460
Rotation Reversible Counterclockwise
RPM 1725
Service Factor 1.15
Shaft Diameter 0.625″
Speed 1725
Starting Method
