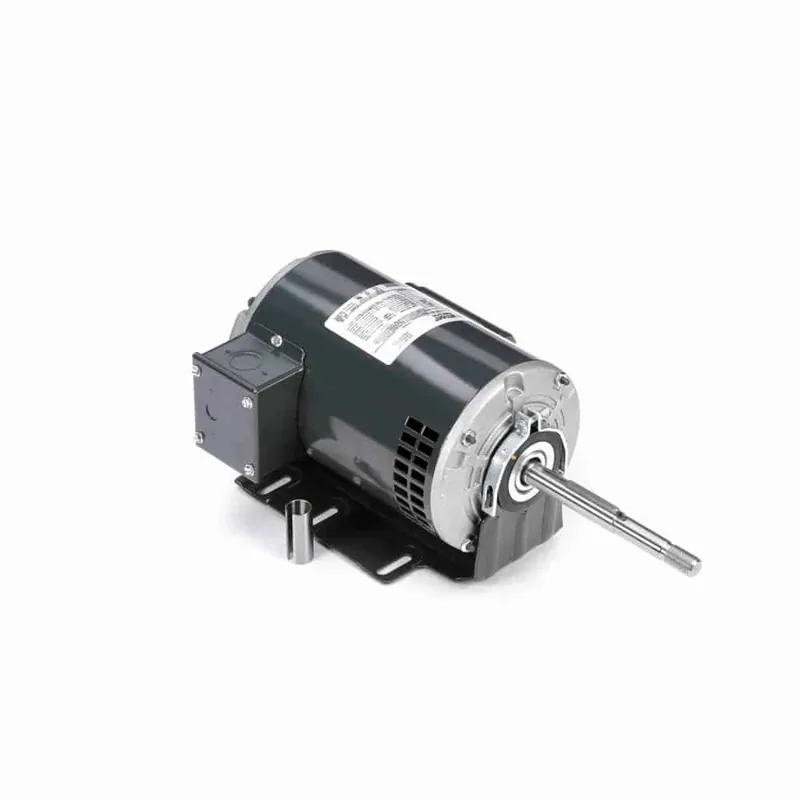

1/2HP 1PH 56Z 4P ODP 1800 115/208-230V AOL RB DRYER

Description

Product Information

Brand Marathon
Mfr # X602
Wright’s # MAR X602
Country of Origin MEX

Specifications

C Dim 15.41″
Electrical Type Capacitor Start Induction Run
Enclosure ODP
Full Load Efficiency 65
Frame 56Z
Frequency 60 Hz
HP 0.5 HP
HP2 1/2 HP
Insulation Class B
kW 0.37kW
Material Rolled Steel
MaAmbient 40°C
Mounting Type Resilient Base
Number of Poles 4
Number of Speeds 1
Overload Protection Automatic
Phase 1
Rated Current 8.0/4.0-4.0
Rated Voltage 115/208-230
Rotation Fixed Counterclockwise
RPM 1725
Service Factor 1.25
Shaft Diameter 0.625″
Speed 1725
Starting Method
