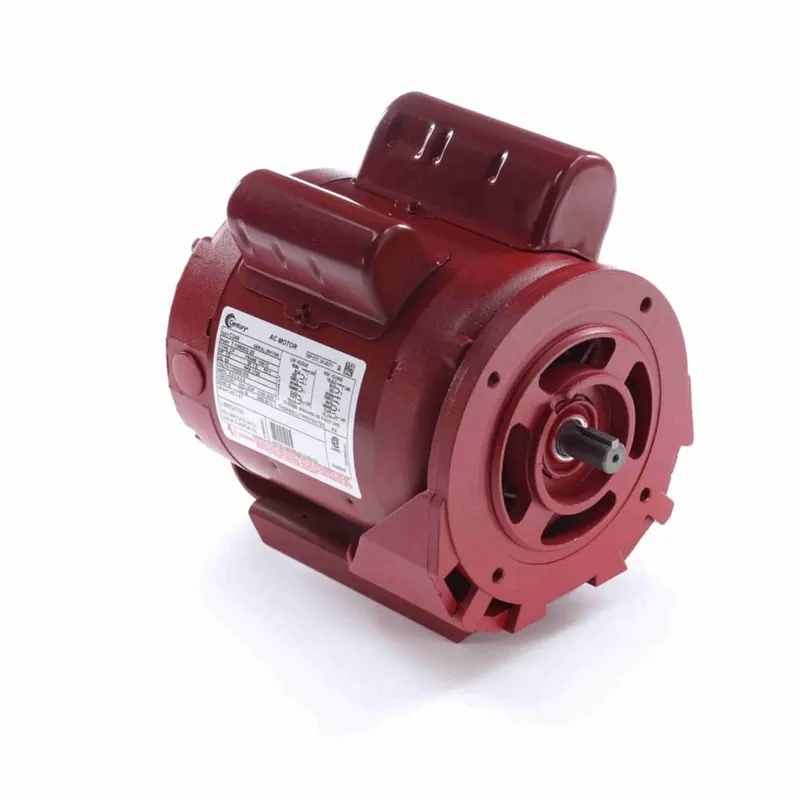

1/2HP 1PH 56YZ 4P ODP 1725 115/208-230V AOL CIRC

Description

Product Information

Brand Century
Mfr # C249
Wright’s # CEN C249
Country of Origin MEX

Specifications

C Dim 9.93″
Electrical Type Capacitor Start, Capacitor Run, Single Or Dual Voltage
Enclosure ODP
Frame 56YZ
Frequency 60 Hz
HP 0.5 HP
HP2 1/2 HP
Insulation Class B
kW 0.37kW
Material Rolled Steel
MaAmbient 50°C
Number of Poles 4
Number of Speeds 1
Overload Protection Thermally Protected
Phase 1
Rated Current 5.8/2.8-2.9
Rated Voltage 115/208-230
Rotation Clockwise
RPM 1725
Service Factor 1.5
Shaft Diameter 0.625″
Speed 1725
Starting Method
