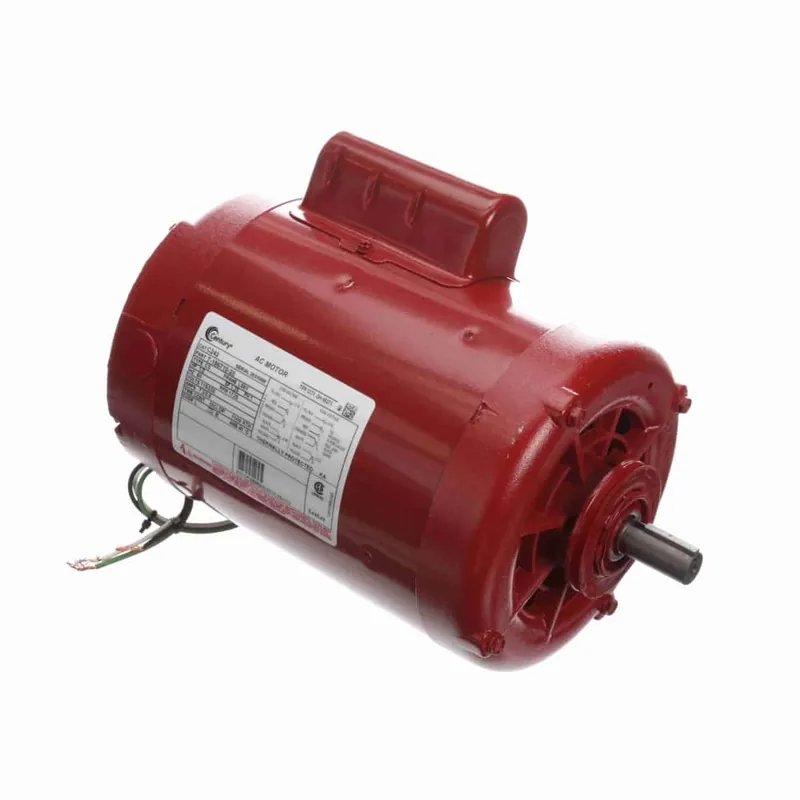

1/2HP 1PH 56Y 4P ODP 1725 115/230V AOL CIRC

Description

Product Information

Brand Century
Mfr # C242
Wright’s # CEN C242
Country of Origin MEX

Specifications

C Dim 11.62″
Electrical Type Capacitor Start, Induction Run, Single Or Dual Voltage
Enclosure ODP
Frame 56Y
Frequency 60 Hz
HP 0.5 HP
HP2 1/2 HP
Insulation Class B
kW 0.37kW
Material Rolled Steel
MaAmbient 40°C
Number of Poles 4
Number of Speeds 1
Overload Protection Thermally Protected
Phase 1
Rated Current 7.2/3.6
Rated Voltage 115/230
Rotation Reversible Clockwise
RPM 1725
Service Factor 1.25
Shaft Diameter 0.625″
Speed 1725
Starting Method
