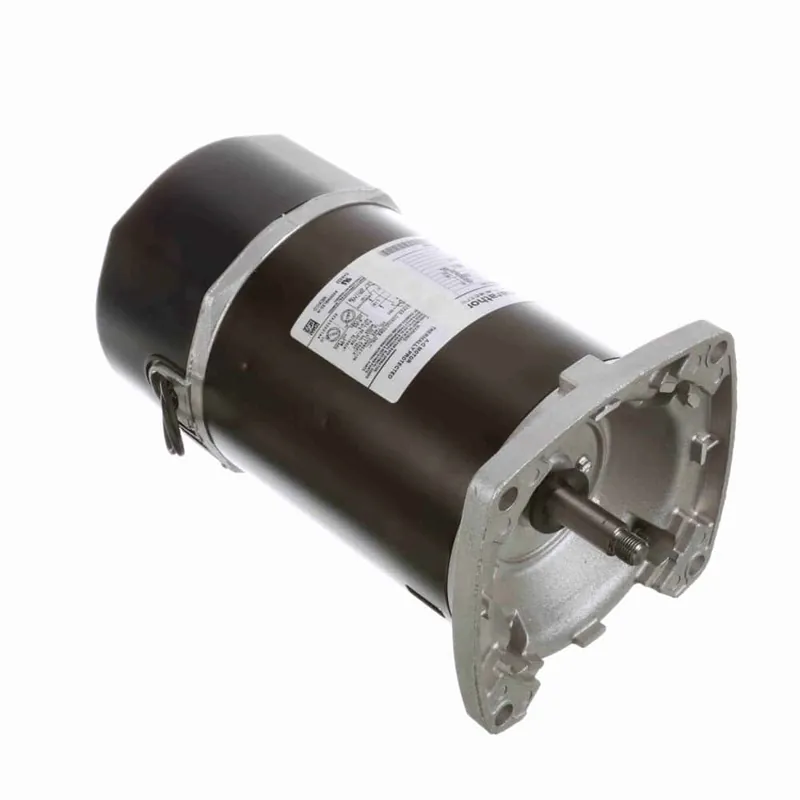

1/2HP 1PH 56Y 2P ODP 3600 115/230V AOL NB JP

Description

Product Information

Brand Marathon
Mfr # C1169
Wright’s # MAR C1169
Country of Origin MEX

Specifications

C Dim 11.59″
Electrical Type Capacitor Start Induction Run
Enclosure ODP
Full Load Efficiency 64.5
Frame 56Y
Frequency 60 Hz
HP 0.5 HP
HP2 1/2 HP
Insulation Class B
kW 0.37kW
Material Rolled Steel
MaAmbient 40°C
Mounting Type Round
Number of Poles 2
Number of Speeds 1
Overload Protection Automatic
Phase 1
Rated Current 10.8,5.4
Rated Voltage 115/230
Rotation Clockwise
RPM 3450
Service Factor 1.9
Shaft Diameter 0.63″
Speed 3450
Starting Method
