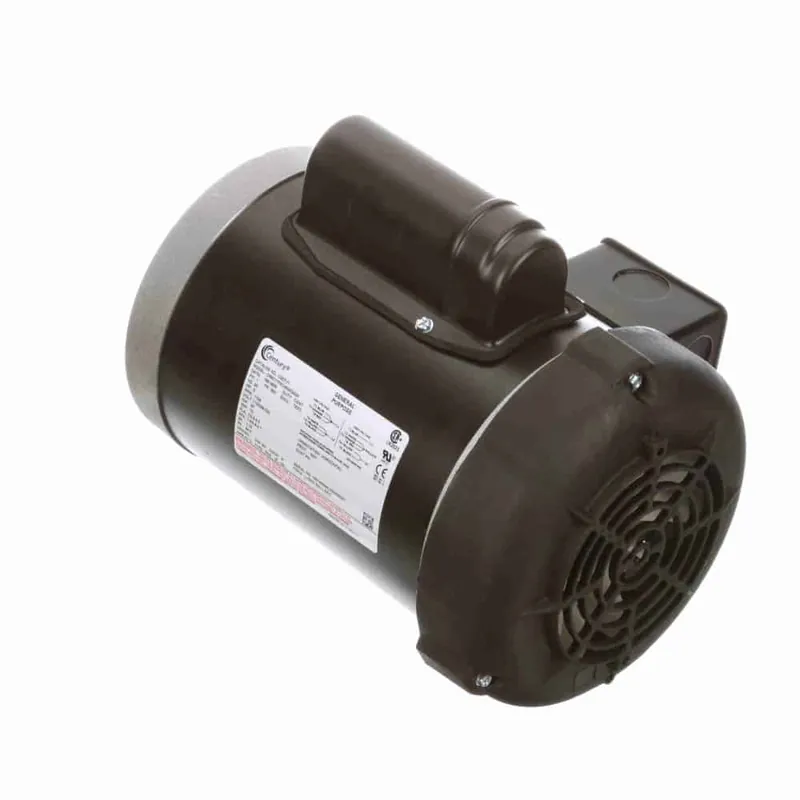

1/2HP 1PH 56C 4P TEFC 1725 115/208-230V

Description

Product Information

Brand Century
Mfr # C907V1
Wright’s # CEN C907V1
Country of Origin MEX

Specifications

C Dim 12.15″
Electrical Type Capacitor Start Induction Run
Enclosure TEFC
Full Load Efficiency 72
Frame 56C
Frequency 60 Hz
HP 0.5 HP
HP2 1/2 HP
Insulation Class B
kW 0.37kW
Material Rolled Steel
MaAmbient 40°C
Number of Poles 4
Number of Speeds 1
Overload Protection No Protection
Phase 1
Rated Current 7/3.5-3.5
Rated Voltage 115/208-230
Rotation Selective Counterclockwise
RPM 1725
Service Factor 1.15
Shaft Diameter 0.625″
Speed 1725
Starting Method
