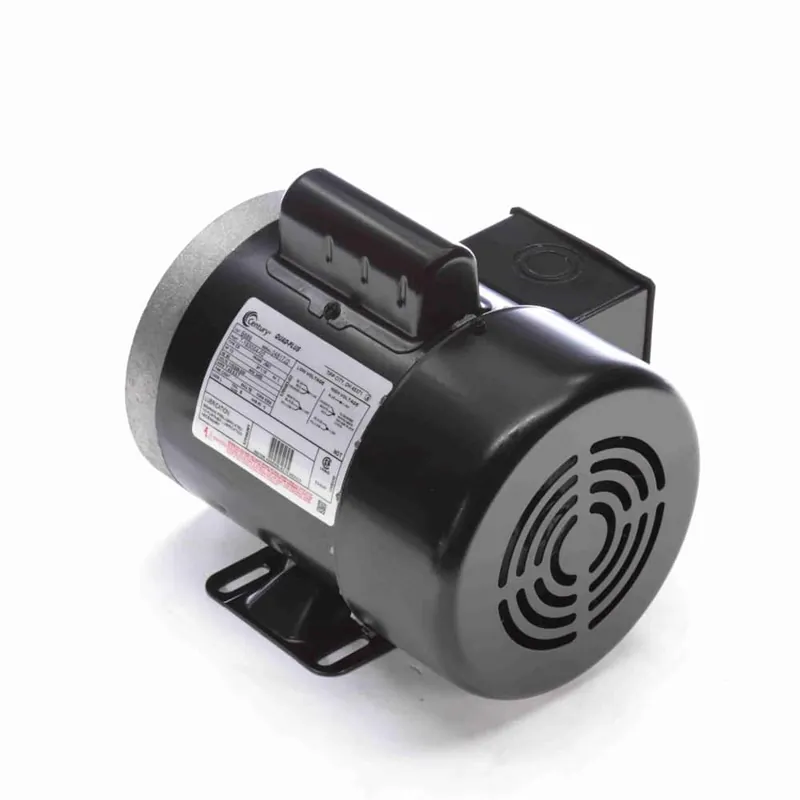

1/2HP 1PH 56C 2P TEFC 3450 115/208-230V

Description

Product Information

Brand Century
Mfr # B888
Wright’s # CEN B888
Country of Origin MEX

Specifications

C Dim 11.34″
Electrical Type Capacitor Start, Induction Run, Single Or Dual Voltage
Enclosure TEFC
Frame 56C
Frequency 60 Hz
HP 0.5 HP
HP2 1/2 HP
Insulation Class B
kW 0.37kW
Material Rolled Steel
MaAmbient 40°C
Number of Poles 2
Number of Speeds 1
Overload Protection No Protection
Phase 1
Rated Current 7.4/3.5-3.7
Rated Voltage 115/208-230
Rotation Reversible Counterclockwise
RPM 3450
Service Factor 1.15
Shaft Diameter 0.625″
Speed 3450
Starting Method
