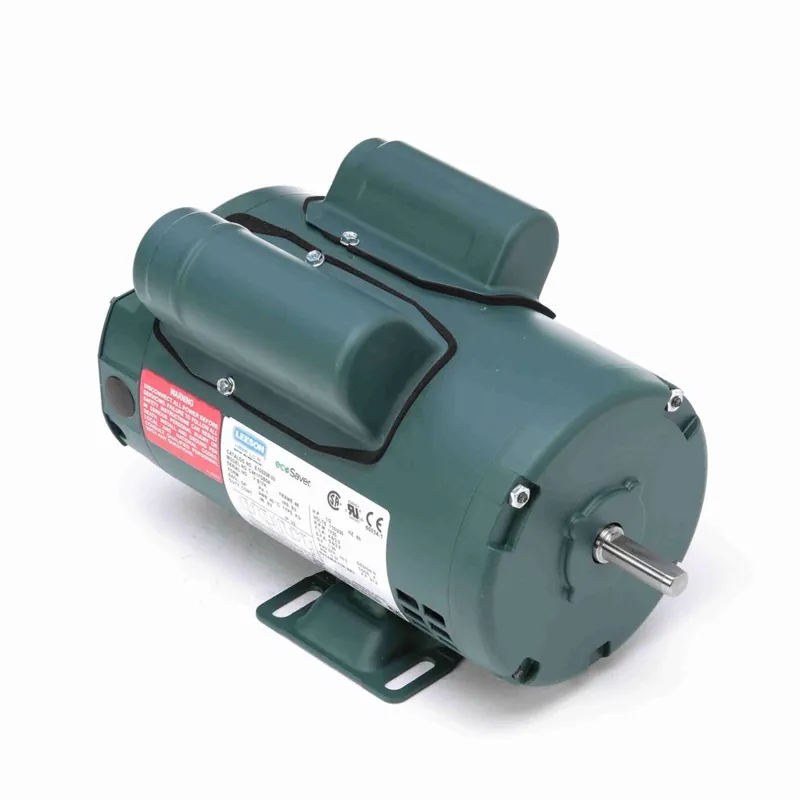

1/2HP 1PH 56 ODP 3600 115/230V

Description

Product Information

Brand Leeson
Sub-Brand ecoSaver™
Mfr # E100337.00
Wright’s # LSN E100337.00
Country of Origin MEX

Specifications

C Dim 10.99″
Electrical Type Capacitor Start Capacitor Run
Enclosure Drip Proof
Full Load Efficiency 72.4
Frame 56
Frequency 60
HP 0.5 HP
HP2 1/2 HP
Insulation Class B
kW 0.37kW
Material Rolled Steel
MaAmbient 40°C
Mounting Type Rigid Base
Overload Protection No Protection
Phase 1
Rated Current 4.4/2.2
Rated Voltage 115/230
Rotation Selective Counterclockwise
RPM 3450
Service Factor 1.25
Shaft Diameter 0.625″
Starting Method
