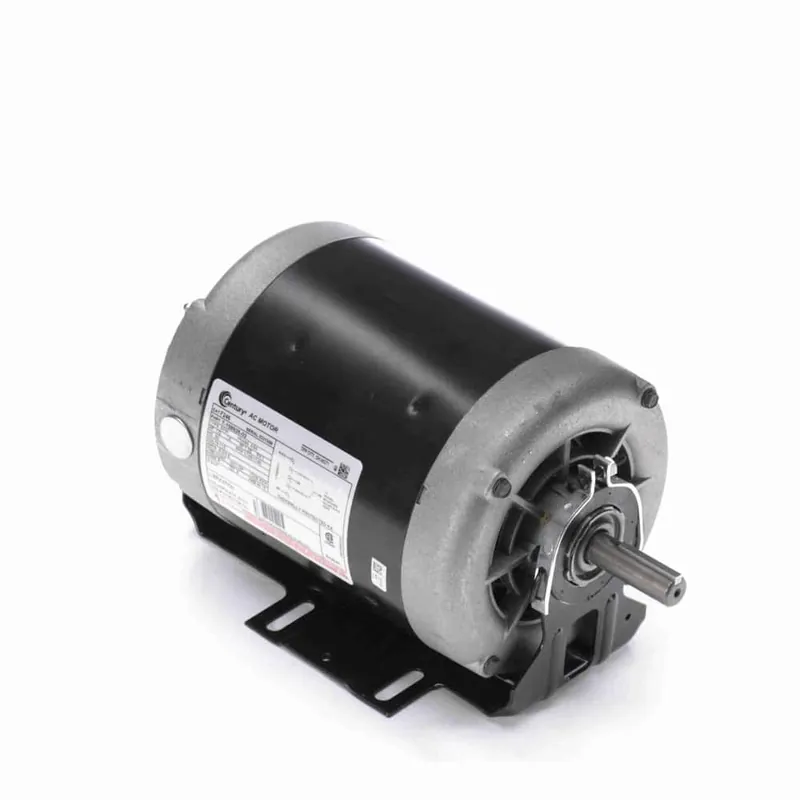

1/2HP 1PH 56 ODP 2spd 1725 115V BM

Description

Product Information

Brand Century
Mfr # F246
Wright’s # CEN F246
Country of Origin MEX

Specifications

C Dim 11.49″
Electrical Type Split Phase, Induction Run, Multi-Speed
Enclosure ODP
Frame 56
Frequency 60 Hz
HP 0.5 HP
HP2 1/2-.14 HP
Insulation Class A
kW 0.37kW
Material Rolled Steel
MaAmbient 40°C
Number of Poles 4/6
Number of Speeds 2
Overload Protection Thermally Protected
Phase 1
Rated Current 6.8/3.8
Rated Voltage 115
Rotation Reversible Counterclockwise
RPM 1725
Service Factor 1.25
Shaft Diameter 0.625″
Speed 1725/1140
Starting Method
