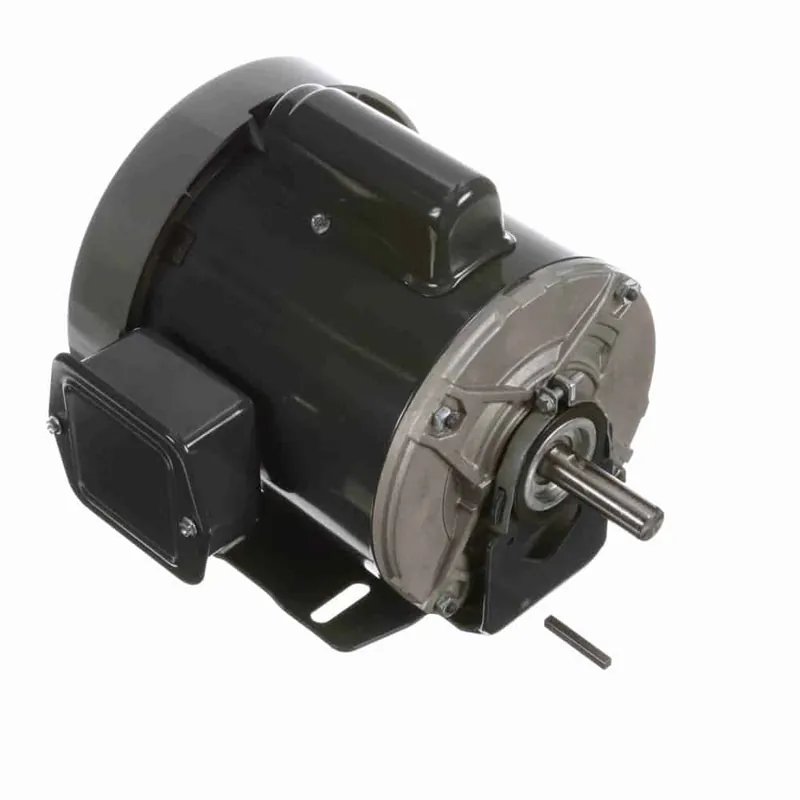

1/2HP 1PH 56 4P TEFC 1800 115/230V AOL RB

Description

Product Information

Brand Marathon
Mfr # C289
Wright’s # MAR C289
Country of Origin MEX

Specifications

C Dim 11″
Electrical Type Capacitor Start Induction Run
Enclosure ODP
Full Load Efficiency 64.9
Frame 56
Frequency 60 Hz
HP 0.5 HP
HP2 1/2 HP
Insulation Class B
kW 0.37kW
Material Rolled Steel
MaAmbient 40°C
Mounting Type Resilient Base
Number of Poles 4
Number of Speeds 1
Overload Protection Automatic
Phase 1
Rated Current 8.6,4.3
Rated Voltage 115/230
Rotation Counterclockwise/Clockwise
RPM 1725
Service Factor 1.15
Shaft Diameter 0.63″
Speed 1725
Starting Method
