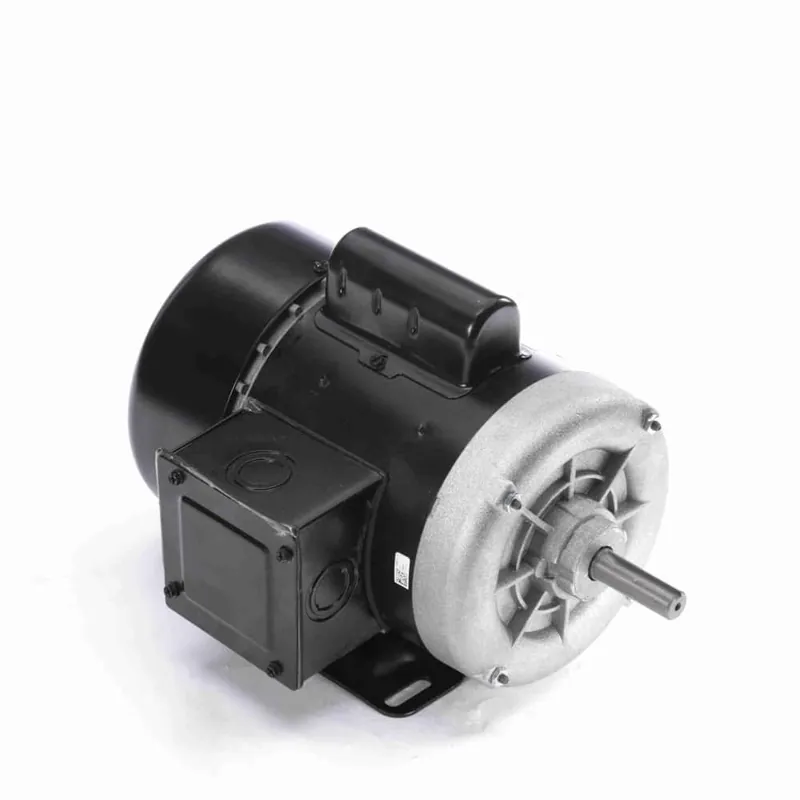

1/2HP 1PH 56 4P TEFC 1725 115/208-230V AOL

Description

Product Information

Brand Century
Mfr # C521
Wright’s # CEN C521
Country of Origin MEX

Specifications

C Dim 12.24″
Electrical Type Capacitor Start, Induction Run, Single Or Dual Voltage
Enclosure TEFC
Frame 56
Frequency 60 Hz
HP 0.5 HP
HP2 1/2 HP
Insulation Class A
kW 0.37kW
Material Rolled Steel
MaAmbient 40°C
Number of Poles 4
Number of Speeds 1
Overload Protection Thermally Protected
Phase 1
Rated Current 7.2/3.5-3.6
Rated Voltage 115/208-230
Rotation Reversible Counterclockwise
RPM 1725
Service Factor 1.15
Shaft Diameter 0.625″
Speed 1725
Starting Method
